A precise, engineer-minded walkthrough for matching a gauge to the exact conditions of your system — pressure range, media, materials, and mounting.
Quick Answer: How to Choose the Right Pressure Gauge
The right pressure gauge is the one that matches four things at once: the pressure range of your system, the type of media being measured (liquid, gas, steam, or vacuum), the environmental conditions around the installation point, and the accuracy class required by your process or regulatory standard. In most industrial and commercial settings, this means selecting a gauge with a working pressure that falls in the middle 25% to 75% of the dial's full scale, choosing a wetted material compatible with the fluid, and confirming the connection size and mounting style fit the existing pipework. Get these four variables right, and the gauge will deliver accurate, long-lasting readings. Get even one wrong, and you risk premature failure, false readings, or a safety hazard.
The sections below walk through each of these decision points in detail, using real-world examples such as a mechanical oil pressure gauge on a hydraulic system and a vacuum pressure gauge on a refrigeration line, so you can apply the same logic to your own equipment.
Step 1 — Define the Pressure Range and Working Pressure
Before looking at gauge types or brands, identify the normal operating pressure of your system and its expected maximum spikes. This single decision has the biggest impact on gauge lifespan.
The 25–75 Rule
Most manufacturers and engineering codes recommend selecting a dial range so that normal operating pressure sits between 25% and 75% of the full scale. For example, if your system typically runs at 150 psi, a 0–200 psi gauge is a poor fit because it puts the reading at 75% of scale with no margin for spikes. A 0–300 psi gauge, where 150 psi sits at 50% of scale, gives the needle room to move without repeatedly slamming against the upper limit during pressure surges.

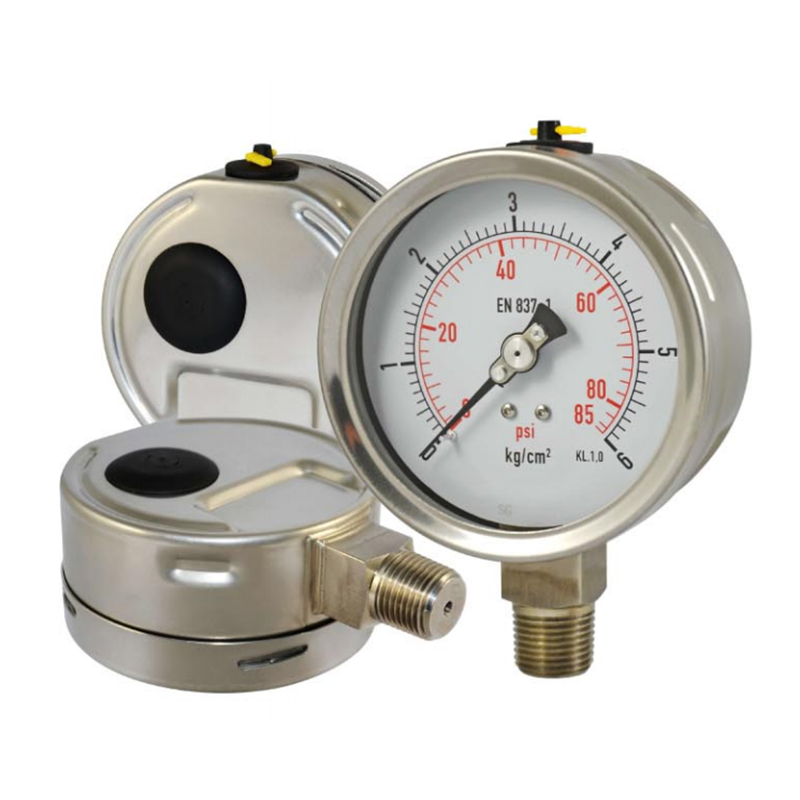

pressure gauge
A gauge running consistently near the top of its dial is not a well-chosen instrument — it is a fatigue test with a face on it.
Accounting for Pressure Spikes
Systems with pumps, compressors, or valves that open and close quickly generate pressure spikes far above steady-state readings. A hydraulic system with a nominal 2,000 psi rating might see momentary spikes above 2,500 psi during valve actuation. Repeated overpressure events fatigue the sensing element, whether it is a Bourdon tube, diaphragm, or bellows, leading to a permanently shifted zero point or a ruptured element. If spikes are frequent, consider a gauge with a liquid-filled case and a pulsation-dampening restrictor fitted in the connection.
Step 2 — Match the Gauge Type to the Media
Pressure gauges are built around different sensing technologies, and each is suited to specific media and pressure ranges.
| Gauge Type | Best Suited For | Typical Range |
|---|---|---|
| Bourdon Tube (C-type) | General liquids and gases, hydraulic and pneumatic lines | 0–15 psi to 0–15,000 psi |
| Diaphragm | Low pressure, viscous or slurry media | 0–15 in H2O to 0–600 psi |
| Capsule | Very low pressure gas applications | 0–1 in H2O to 0–30 psi |
| Digital / Electronic | Applications requiring data logging or remote monitoring | Full vacuum to 30,000 psi |
Example: Mechanical Oil Pressure Gauge
A mechanical oil pressure gauge used on an engine or hydraulic pump typically relies on a Bourdon tube design because it offers reliable performance without an external power source, tolerates moderate vibration, and handles the viscosity and slight contamination common in lubrication systems. Because these gauges are purely mechanical, they remain functional even during electrical failures, which is why they are still preferred on heavy machinery, marine engines, and industrial compressors where continuous monitoring is critical regardless of power availability.
Step 3 — Consider Vacuum and Compound Applications
Not every application involves positive pressure. Refrigeration, distillation, degassing, and vacuum packaging systems require instruments that read below atmospheric pressure.
Vacuum vs. Compound Gauges
A vacuum pressure gauge reads pressure below atmospheric, typically scaled from 0 to -30 inHg or 0 to -101 kPa, and is essential for evacuation checks on refrigerant lines, vacuum ovens, and laboratory chambers. If the system alternates between vacuum and positive pressure, such as a steam condenser or a compressor's suction side, a compound gauge is the correct choice since it displays both ranges on a single dial, usually marked from -30 inHg to a positive value like 150 or 300 psi.
Note Vacuum measurement demands a dial with fine graduations near the zero point, since small leaks often only shift the reading by a few inches of mercury. A gauge with a 4-inch or larger dial improves resolution significantly compared to a 2-inch gauge, making it easier to detect gradual leaks during a hold-test on refrigeration or vacuum-sealed equipment.
Step 4 — Select the Correct Wetted Materials
The parts of the gauge that contact the process fluid, including the Bourdon tube, socket, and connection, must resist corrosion and chemical attack from that specific media.
- Brass or bronze internals are cost-effective for water, oil, air, and non-corrosive gases.
- Stainless steel 316L is recommended for corrosive chemicals, seawater, and food or pharmaceutical processes requiring sanitary compliance.
- Monel or Hastelloy internals are reserved for highly aggressive acids or chlorine-based media where standard stainless steel would degrade quickly.
- PTFE-lined or diaphragm-seal gauges protect the sensing element from viscous, crystallizing, or particulate-laden fluids that would otherwise clog a standard Bourdon tube.
Warning Using a mismatched material is one of the most common causes of early gauge failure. A brass-internal gauge installed on a chlorinated water line, for instance, can corrode and fail within months, while a stainless steel version on the same line can last several years.
Step 5 — Choose Dial Size, Connection, and Mounting Style
Physical fit and readability matter just as much as the internal mechanism.
Dial Size
Common dial sizes range from 1.5 inches to 6 inches. A 2.5-inch dial is typical for compact equipment panels, while a 4-inch or larger dial is preferred when the gauge must be read from several feet away, such as on a boiler room wall or a large compressor skid.
Connection Type and Orientation
Confirm whether the existing port uses a lower-mount (bottom) or back-mount (center back) connection, and match the thread type, commonly NPT or BSP, to avoid leaks at the fitting. Panel-mounted gauges typically use a back connection with a front flange, while pipe-mounted gauges use a bottom connection threaded directly into a tee or gauge valve.
Step 6 — Verify Accuracy Class and Environmental Protection
Accuracy class, expressed as a percentage of full scale, determines how tightly the gauge reading tracks true pressure. Grade 2A (±0.5%) or better is typical for test and calibration standards, Grade A (±1%) suits most industrial process monitoring, and Grade B (±2%) is acceptable for utility applications like air compressor tanks or general shop air.
Environmental Ratings
Outdoor or washdown installations need a weatherproof or hermetically sealed case rated at least IP65. Gauges exposed to vibration, such as those mounted directly on pumps or compressors, benefit from a glycerin-filled case, which dampens needle flutter and extends internal component life significantly compared to a dry case under the same vibration levels.
Best Practice Pairing the correct accuracy class with a properly rated case is what separates a gauge that lasts years from one that needs replacing within a single season.
Common Mistakes to Avoid When Selecting a Gauge
- Choosing a full-scale range that is too close to normal operating pressure, leaving no margin for spikes.
- Ignoring media compatibility and installing a brass gauge on a corrosive or chemically aggressive line.
- Skipping a snubber or pulsation dampener on systems with rapid pressure cycling, which shortens gauge life.
- Overlooking vacuum service and installing a standard positive-pressure gauge where a compound or vacuum-rated dial is actually needed.
- Selecting a dial too small to read accurately from the normal viewing distance.
Caution A gauge selected without checking media compatibility can fail silently — corroding internally while still appearing to function, until it gives a dangerously inaccurate reading.
Practical Selection Checklist
Use the following checklist as a quick reference before placing an order or replacing a failed gauge:
- Confirm normal operating pressure and expected spikes.
- Select a full-scale range so normal pressure sits near the midpoint of the dial.
- Identify the media type: liquid, gas, steam, or vacuum.
- Match wetted materials to the chemical properties of the fluid.
- Choose dial size based on viewing distance and required resolution.
- Confirm thread type, size, and mounting orientation match the installation point.
- Select the accuracy class required by your process or applicable standard.
- Add protective features such as a liquid-filled case, snubber, or diaphragm seal where vibration, pulsation, or contamination is present.
Final Thoughts
Choosing the right pressure gauge is a matter of matching the instrument to the real conditions of your system rather than simply picking whatever dial fits the port size. Whether you are specifying a mechanical oil pressure gauge for a hydraulic power unit or a vacuum pressure gauge for a refrigeration evacuation procedure, working through pressure range, media compatibility, dial size, and environmental protection in order will consistently lead to a reliable, long-lasting instrument. Taking the extra time at the selection stage almost always costs less than the downtime and troubleshooting that follows an undersized, mismatched, or poorly protected gauge.
