What is a gas flow meter and how does it work?

What Is a Gas Flow Meter?

A gas flow meter is a device used to measure the volume, mass, or velocity of a gas as it moves through a pipe or duct. In simple terms, it answers one question: how much gas is passing through a given point over a specific period of time. This measurement is typically expressed in units such as cubic feet per minute (CFM), cubic meters per hour (m³/h), or standard liters per minute (SLPM), depending on the industry and application.

Gas flow meters are used across a wide range of industries, including oil and gas, chemical processing, HVAC, power generation, environmental monitoring, and medical equipment. Whether the goal is billing accuracy, process control, safety monitoring, or leak detection, an accurate flow measurement is essential. A basic gas flow gauge may only provide a visual reading, while more advanced systems use electronic sensors to capture, log, and transmit data automatically.

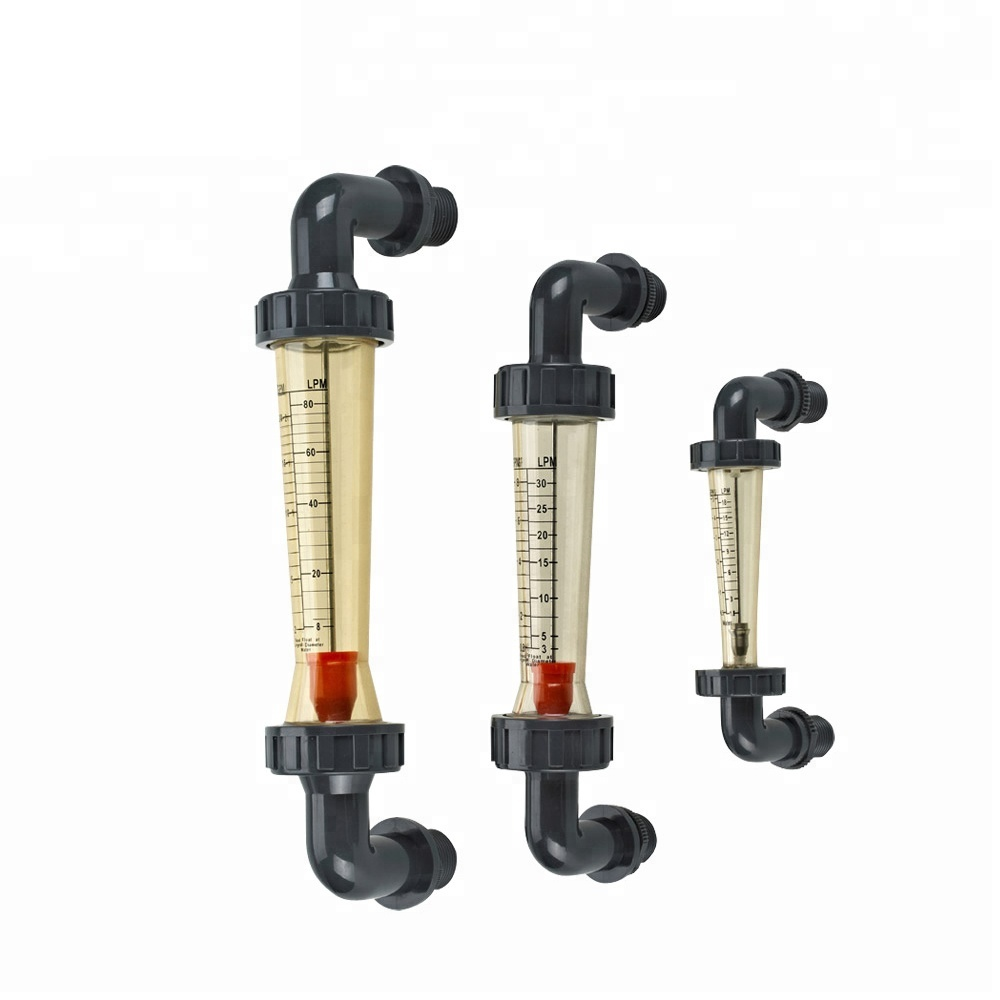

gas flow meter

How Does a Gas Flow Meter Work?

The working principle of a gas flow meter depends on the technology it uses, but most devices follow one of three general approaches: mechanical displacement, differential pressure, or physical property sensing (thermal, acoustic, or vibrational).

Mechanical Displacement

Mechanical meters, such as diaphragm or rotary meters, physically capture a known volume of gas in a chamber and count how many times that chamber fills and empties. The total flow is calculated by multiplying the chamber volume by the number of cycles.

Differential Pressure

Devices like orifice plates create a controlled restriction in the pipe. As gas passes through, pressure drops on the downstream side. This pressure difference is measured and converted into a flow rate using established fluid dynamics equations.

Physical Property Sensing

Modern devices, especially the electronic gas flow meter, rely on sensors that detect heat transfer, sound wave travel time, or vortex frequency. For example, thermal mass meters measure how much heat is carried away by the gas, while ultrasonic meters calculate flow velocity based on the time it takes sound waves to travel with and against the flow direction.

The core idea behind every gas flow meter — mechanical or electronic — is the same: convert a physical phenomenon into a measurable, repeatable number.

Main Types of Gas Flow Meters

There is no single "best" gas flow meter — the right choice depends on gas type, pipe size, required accuracy, budget, and environmental conditions. Below are the most widely used types.

Thermal Mass Flow Meters

These meters measure mass flow directly by sensing heat dissipation, making them ideal for low-flow and low-pressure gas applications such as laboratory instrumentation and semiconductor manufacturing.

Vortex Flow Meters

Vortex meters detect the frequency of vortices shed behind a bluff body placed in the flow path. They offer good accuracy for steam, gas, and liquid applications and have no moving parts, which reduces maintenance needs.

Turbine Flow Meters

A turbine flow meter uses a rotor that spins as gas flows through it. The rotational speed is proportional to flow velocity. These meters are common in natural gas pipelines due to their durability and repeatable accuracy.

Ultrasonic Flow Meters

Ultrasonic meters use sound waves to measure flow velocity without any physical obstruction. Because they are non-invasive, they cause no pressure drop and are well suited for large diameter pipelines.

Orifice Plate Flow Meters

One of the oldest and most economical designs, an orifice plate meter creates a pressure drop that is measured and converted into flow rate. It is simple, low-cost, but generally less accurate than modern electronic alternatives.

Rotary and Diaphragm Meters

Commonly used for utility gas billing, these mechanical meters offer reliable volumetric measurement over long service life, though they require periodic mechanical maintenance.

Comparing Gas Flow Meter Types

The table below summarizes how the major gas flow meter types compare in terms of accuracy, moving parts, and typical use cases.

One of the most important distinctions in flow measurement is between mechanical and electronic technology. Mechanical meters, such as diaphragm and rotary designs, rely on moving parts to physically capture gas volume. They are proven, cost-effective, and require no external power source, but they are subject to mechanical wear over time.

An electronic gas flow meter, on the other hand, uses sensors and microprocessors to detect flow through thermal, ultrasonic, or vortex principles. These devices typically offer higher accuracy, faster response times, and the ability to output digital data for remote monitoring, data logging, or integration with SCADA and building management systems. While the upfront cost is often higher, the reduction in maintenance and improved data visibility frequently offsets that cost over the equipment's lifespan.

• Mechanical meters: lower cost, no power required, subject to wear
• Electronic meters: higher accuracy, digital output, minimal moving parts
• Hybrid systems: mechanical meters retrofitted with electronic pulse output for remote reading

Key Factors When Choosing a Gas Flow Meter

Selecting the right meter requires balancing several technical and practical factors. Below is a step-by-step approach commonly used by engineers during specification.

1. Identify the gas type and its chemical properties, including moisture content and corrosiveness
2. Determine the expected flow rate range, including minimum and maximum values
3. Establish the required accuracy level for the application, such as billing versus general monitoring
4. Evaluate pipe size and installation orientation, including available straight-run length
5. Consider environmental conditions such as temperature, pressure, and vibration
6. Decide whether digital output or remote monitoring capability is needed
7. Compare total cost of ownership, including installation, calibration, and maintenance

For example, a facility monitoring compressed air for cost allocation may prioritize a thermal mass electronic gas flow meter for its stability at low flow rates, while a natural gas transmission company may prefer a turbine or ultrasonic meter for its accuracy at high volumes and minimal pressure loss.

Common Applications of Gas Flow Meters

Gas flow meters are deployed across nearly every industry that handles gaseous media. Some of the most common applications include:

• Natural gas custody transfer and utility billing
• Compressed air system monitoring for energy audits
• HVAC airflow measurement in commercial buildings
• Medical gas delivery systems, including oxygen and nitrous oxide
• Chemical and petrochemical process control
• Landfill and biogas emissions monitoring

In many of these settings, a simple gas flow gauge may still be used for quick visual checks, particularly in low-risk or low-precision environments, while critical processes rely on continuous electronic measurement for real-time control and reporting.

Maintenance and Calibration Considerations

Regardless of type, all gas flow meters require periodic calibration to maintain accuracy. Mechanical meters typically need calibration checks every one to three years due to wear on internal components, while electronic meters with no moving parts, such as thermal and ultrasonic designs, often maintain calibration stability for longer intervals, sometimes up to five years, depending on the manufacturer's specifications and operating conditions.

Routine maintenance should also include checking for sensor fouling, verifying zero-flow readings, and inspecting installation conditions such as upstream and downstream straight pipe requirements, which can significantly affect measurement accuracy if not properly maintained.
