Choosing the Right Flow Meter for Liquid, Gas, or Steam
A practical, engineering-grounded guide to matching flow meter technology to fluid phase — so measurement error, maintenance cost, and safety risk stay low.
The Short Answer: Match the Meter Technology to the Fluid Phase
The best flow meter for your application depends primarily on whether you are measuring a liquid, gas, or steam, along with secondary factors like conductivity, viscosity, pressure, and required accuracy. As a quick reference: electromagnetic and Coriolis meters generally work best for conductive or high-viscosity liquids, thermal mass and vortex meters are typically favored for gases, and vortex or orifice-based meters with pressure compensation are the standard choice for steam. There is no single universal flow meter that performs optimally across all three fluid states, which is why understanding your process conditions before purchasing is critical.
Choosing incorrectly can lead to measurement errors exceeding 5–10%, unnecessary maintenance costs, and even safety risks in high-pressure or high-temperature systems. The remainder of this article breaks down exactly how to evaluate your fluid and select the correct meter type with confidence.
There is no universal flow meter. The physical state of your fluid decides the technology before anything else does.
Why Fluid Type Determines Meter Technology
Every flow measurement technology relies on a physical principle — whether it is electromagnetic induction, ultrasonic time-of-flight, mechanical displacement, or thermal dispersion. These principles behave differently depending on the physical state and properties of the fluid passing through the meter. A technology that performs flawlessly on water may fail entirely on natural gas, and a meter designed for dry gas will not tolerate the two-phase nature of wet steam.

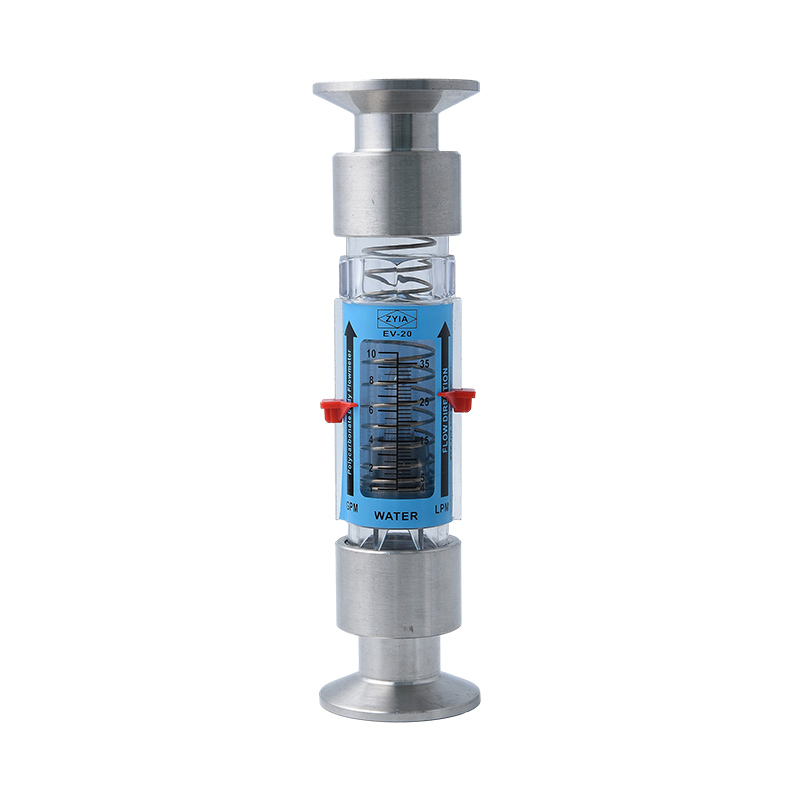

flow meter
Liquids: Density, Conductivity, and Viscosity Matter Most
Liquids are generally incompressible, which makes volumetric measurement more straightforward than with gases. However, a liquid flow meter still needs to be matched to the fluid's electrical conductivity (for electromagnetic types), viscosity (for turbine and positive displacement types), and the presence of solids or bubbles (which can disrupt ultrasonic and vortex readings).
Gases: Compressibility and Density Variation
Gases are compressible, meaning their density changes significantly with temperature and pressure. This requires either direct mass measurement or careful pressure/temperature compensation to convert volumetric readings into standardized values (Nm³/h or SCFM).
Steam: High Temperature and Phase Sensitivity
Steam presents the most demanding measurement environment because it exists at high temperature and pressure, and any drop in either can cause condensation, turning part of the flow into liquid droplets. Meters chosen for steam must tolerate these extremes while maintaining accuracy across a wide flow range.
Info
Always confirm whether your process fluid can undergo a phase change during operation — this alone eliminates several meter categories immediately.
Liquid Flow Meter Technologies Compared
When selecting a liquid flow meter, the most common technologies are electromagnetic, ultrasonic, Coriolis, turbine, vortex, and positive displacement. Each has strengths depending on your fluid's conductivity, cleanliness, and required accuracy level. The table below summarizes how these compare for typical liquid applications.
| Meter Type | Best For | Typical Accuracy | Limitation |
|---|---|---|---|
| Electromagnetic | Conductive liquids, water, slurries | ±0.2% – 0.5% | Requires conductive fluid |
| Coriolis | High-accuracy mass measurement, viscous fluids | ±0.1% – 0.2% | Higher upfront cost |
| Ultrasonic | Clean liquids, non-invasive needs | ±0.5% – 1% | Sensitive to bubbles/solids |
| Turbine | Low-viscosity, clean fluids | ±0.15% – 0.5% | Wear on moving parts |
| Positive Displacement | High-viscosity fluids, fuels, oils | ±0.1% – 0.5% | Pressure drop, moving parts |
For most municipal water and wastewater applications, an electromagnetic meter is the practical choice because it has no moving parts and delivers stable readings even with slightly dirty water. For custody transfer of fuels or chemicals where billing accuracy is essential, a Coriolis meter's ability to measure mass flow directly — independent of density changes — makes it the preferred option despite the higher initial investment.
Gas Flow Meter Selection Criteria
Gas measurement introduces the challenge of compressibility. As pressure or temperature shifts, the same mass of gas occupies a different volume, so volumetric meters without compensation will report misleading numbers. Two technologies dominate modern gas measurement:
- Thermal mass flow meters measure gas directly by mass, eliminating the need for separate pressure and temperature compensation. They are widely used for compressed air, natural gas, and biogas monitoring.
- Vortex meters detect the frequency of vortices shed behind a bluff body, providing reliable readings for steam, gas, and liquid, though they require a minimum flow velocity to function accurately.
- Differential pressure (orifice plate) meters remain common in older gas distribution systems due to low cost, though they require more frequent maintenance and have narrower turndown ratios.
- Ultrasonic gas meters are increasingly popular in natural gas custody transfer because they introduce no pressure drop and have no moving parts to wear out.
When selecting a gas meter, always confirm the required turndown ratio — the range between minimum and maximum measurable flow. Many industrial processes experience flow variations of 10:1 or more throughout a shift, and a meter with a narrow turndown ratio will produce unreliable readings at low flow rates.
Warning
A meter selected only for average flow, without checking low-flow and peak-flow extremes, is one of the most common causes of gas measurement failure.
Steam Flow Measurement Challenges
Steam is arguably the most demanding fluid to measure accurately. Saturated steam changes density dramatically with pressure, and any heat loss along the pipeline can cause partial condensation, creating a two-phase flow that confuses many meter types. For this reason, vortex meters combined with temperature and pressure compensation are the most widely recommended solution for saturated and superheated steam applications.
Key considerations for steam flow measurement include:
- Verify the meter's maximum operating temperature and pressure ratings exceed your system's peak conditions with a safety margin.
- Install adequate straight pipe runs upstream and downstream (often 10–20 pipe diameters) to stabilize the flow profile before it reaches the sensor.
- Insulate the meter body and connecting piping to minimize condensation near the measurement point.
- Select a meter with integrated pressure and temperature compensation to automatically calculate mass flow rather than relying on manual corrections.
Success
Industrial boiler operators who switch from uncompensated orifice plates to compensated vortex meters typically report measurement error reductions from around 8% down to under 1.5%, directly improving energy accounting and boiler efficiency tracking.
Electronic Flow Meter Benefits Across Applications
Across all three fluid categories, one clear trend has emerged: the shift toward electronic flow meter designs over traditional mechanical instruments. Electronic meters — including electromagnetic, ultrasonic, Coriolis, and thermal mass types — offer several practical advantages that mechanical meters cannot match.
First, electronic meters typically have no moving parts in contact with the fluid, which dramatically reduces wear, maintenance frequency, and the risk of mechanical failure under harsh conditions. Second, they provide digital output signals (4-20mA, pulse, HART, or Modbus) that integrate directly into modern control and SCADA systems, removing the need for manual data logging. Third, electronic meters generally maintain accuracy across a wider flow range, with turndown ratios often reaching 100:1 compared to 10:1 or lower for many mechanical designs.
The tradeoff is typically a higher upfront purchase cost, though this is frequently offset over a 5–10 year period by reduced maintenance labor and fewer unplanned shutdowns. For facilities running continuous processes where downtime is costly, the total cost of ownership of an electronic meter is often lower despite the higher initial price tag.
Lower long-term cost rarely comes from the cheapest meter — it comes from the meter that stops needing attention.
Practical Selection Checklist
Before finalizing a purchase decision, work through the following checklist to confirm the meter you are considering fits your actual process conditions:
- Confirm the fluid phase — liquid, gas, or steam — and whether any phase change is likely during operation.
- Measure or estimate the fluid's conductivity, viscosity, and cleanliness (presence of particles or bubbles).
- Determine the minimum and maximum expected flow rates and calculate the required turndown ratio.
- Check the maximum operating pressure and temperature against the meter's rated specifications.
- Decide whether volumetric or mass flow measurement is more relevant for your billing or process control needs.
- Review available output signal types to ensure compatibility with your existing control system.
- Confirm installation space allows for the required upstream and downstream straight pipe runs.
Common Mistakes When Choosing a Flow Meter
Many measurement errors trace back to selection mistakes made before installation rather than problems with the meter itself. A few of the most frequent issues include choosing an electromagnetic meter for non-conductive fluids like oils or solvents, where the technology simply cannot function; installing a turbine meter in a fluid carrying suspended solids, leading to rapid bearing wear; and applying an uncompensated meter to a gas or steam system with fluctuating pressure, producing readings that drift over time even though the meter itself is functioning correctly.
Another common oversight is underestimating the required turndown ratio. A facility that only accounts for average flow, without considering low-flow startup conditions or high-flow peak demand, often ends up with a meter that reads inaccurately — or not at all — outside its narrow effective range. Reviewing at least 12 months of historical flow data, where available, helps avoid this mistake.
Danger
Never install an electromagnetic meter on a non-conductive fluid expecting it to "mostly work." The technology cannot generate a signal without sufficient conductivity, and readings will fail entirely rather than drift.
Final Recommendations
In summary, the right flow meter is determined by matching your fluid's physical state and properties to a technology built for those specific conditions. For conductive or viscous liquids, an electromagnetic or Coriolis liquid flow meter is generally the safest and most accurate choice. For gases, thermal mass or ultrasonic meters offer strong performance without moving parts. For steam, compensated vortex meters remain the industry standard due to their tolerance for high temperature and pressure.
Across nearly every category, the broader shift toward electronic flow meter technology continues because of the combination of lower long-term maintenance costs, wider turndown ratios, and seamless digital integration with modern control systems. Taking the time to properly characterize your fluid and process conditions before purchasing will save significant cost and prevent measurement headaches for years to come.
