Split Electronic Digital Magnetic Flow Meters for Water

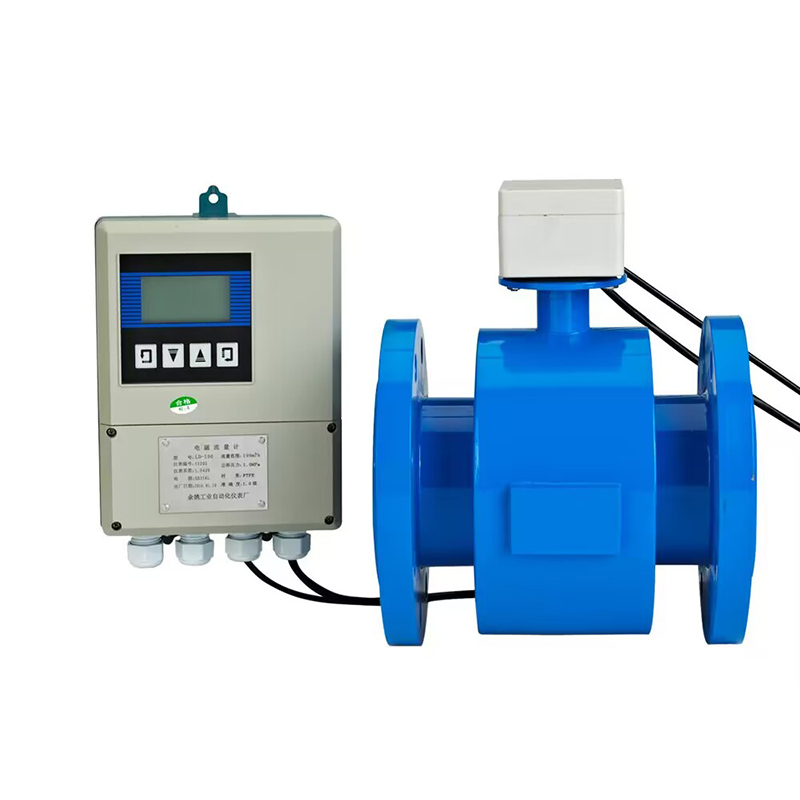

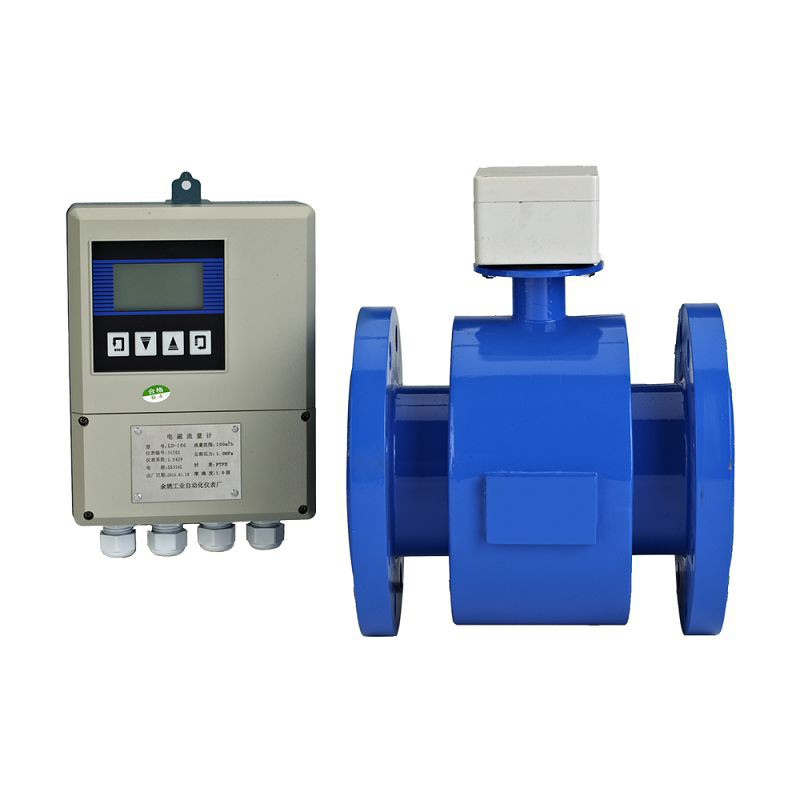

The Split Electronic Digital Magnetic Flow Meter, based on Faraday's law of electromagnetic induction, enables frictionless and pressure-loss-free flow measurement. It is suitable for municipal water supply and drainage, industrial circulating water, chemical process water treatment, sewage treatment, mine water management, and industries with high requirements for liquid flow accuracy, such as food and pharmaceuticals. This flow meter features a split design, separating the sensor from the electronic converter. The sensor is directly mounted on the pipeline, while the electronic converter can be remotely installed, allowing for more flexible deployment and maintenance. This design is particularly suitable for measuring high-temperature, high-pressure, and corrosive liquids.

LD series is a high-quality Magnetic Flow Meter that measures volumetric range. Our magnetic flowmeter is designed to measure the flow of the fluids which are conductive. One of the reasons why it is suitable for Water and Wastewater and diverse applications is because once it is installed, the operation is quite simple as the Magmeter can function with minimum maintenance.

In summary, our Digital Flowmeter offers a cutting-edge solution to businesses in need of accurate flow rate measurement. It is reliable, durable, and cost-efficient, making it a valuable addition to any business. With its easy-to-use interface and versatility, our product caters to a wide range of applications, making it an desirable instrument to have. If you're looking for a reliable and accurate flow rate measurement device, then you should try our Digital Flowmeter. Please feel free to contact us if you have any further questions about this device.

KINGTAI MA series Converter can be used with LD series flow tubes in both compact or separate versions.

6. Three integrator gross inside, respective register: Forward gross, reverse gross, and minus value gross

■Flow Selection Table

Caliber(mm)	Minimum Flow Options (m³/h)	Common choice of full scale flow range options (m³/h)
10	0.10	0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5
15	0.20	1.0,1.2,1.6,2.0,2.5,3.0,4.0.5,0.60
20	0.35	2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0
25	0.55	3.0,4.0,5.0,6,0.8,0.10,0.12,0.14.0,16.0
32	1.0	5.0,6.0,8.0.,10.0,12,16,20,25
40	1.5	8.0,10.0,12,16,20,25,30,40
50	2.5	12,16,20,25,30,40,50,60,70
65	4.0	20,25,30,40,50,60,80,100,120
80	5.5	25,30,40,50,60,80,100,120,160
100	8.5	40,50,60,80,100,120,160,200,250
125	14	60,80,100,120,160,200,250,300,400,500,600
150	20	100,120,160,200,250,300,400,500,600
200	35	160,200,250,300,400,500,600,800,1000
250	55	200,250,300,400,500,600,800,1000,1200,1600
300	80	300,400,500,600,800,1000,1200,1600,2000,2500
350	105	400,500,600,800,1000,1200,1600,2000,2500,3000
400	135	500,600,800,1000,1200,1600,2000,2500,3000,4000
450	175	600,800,1000,1200,1600,2000,2500,3000,4000,5000
500	215	800,1000,1200,1600,2000,2500,3000,4000,5000,6000
600	305	1000,1200,1600,2000,2500,3000,4000,5000,6000,1000
700	415	1200,1600,2000,2500,3000,4000,5000,6000,10000,12000
800	545	1600,2000,2500,3000,4000,5000,6000,10000,12000,16000
900	690	2000,2500,3000,4000,5000,6000,10000,12000,16000,20000
1000	850	2500,3000,4000,5000,6000,10000,12000,16000,20000,25000
1200	1250	6000,10000,20000,30000,40000,50000
1400	1700	8000,10000,20000,30000,40000,50000
1600	2500	10000,20000,30000,40000,50000,65000
1800	3000	15000,20000,30000,40000,50000,60000,70000,80000
2000	3500	20000,40000,60000,80000,100000
2200	4000	20000,40000,60000,80000,100000,120000

■Dimension (See diagram and drawing below)

Diameter(mm)	A	D	DO	n-Ф
10	200	90	60	4X14
15	200	95	65	4X14
20	200	105	75	4X14
25	200	115	85	4X14
32	200	140	100	4X18
40	200	150	110	4X18
50	200	165	125	4X18
65	250	175	145	8X18
80	250	200	160	8X18
100	250	220	180	8X18
125	250	250	210	8X18
150	300	285	240	8X22
200	350	340	295	8X22
250	400	395	350	12X22
300	460	445	400	12X22
350	460	505	460	16X26
400	600	565	515	16X26
450	600	615	565	20X26
500	600	670	620	20X26
600	600	780	725	20X30
700	600	895	840	20X30
800	800	1015	950	24X33
900	900	1115	1050	24X33
1000	1000	1230	1160	28X33
1200	1200	1405	1340	28x36
1400	1400	1630	1560	32X36
1600	1600	1830	1760	36X36
1800	1800	2045	1970	36X36
2000	2000	2265	2180	48X42
2200	2200	2405	2315	52X45

■Location of installation

In order to enable a reliable flow meter, Pls note the following installation requirements:
1. As far as possible to avoid ferromagnetic objects and equipment with strong magnetic fields(big electric machine, big transformer) is protect of the magnetic field sensor.
2. lt should be installed in the ventilation in the dry, avoid moist and stagnant water.
3. lt should be avoided solarization and rain, To avoid environment temperature higher than 60℃ and humidity more than 95%
4. Flow meter should be enough space around for easy installation and Maintenance.
5. Flow meter must be installed at the outlet of the pump. valve should be installed at downstream of the flow meter.

Diameter	DN10mm-DN2200mm
Electrode	316L, Hc, Ti, Ta, Pt
Liner	Rubber,PTFE, PFA
Medium	conductivity liquids
Medium conductivity	≥5μ s/cm
Accuracy	±0.5%RS
Working temperature	-25°C~150°C
Working pressure	1.0MPa
Connection standard	ANSI150, DIN JIS 10K
Output	4-20mA/frequency/pulse
Power supply	85~265VAC (50HZ or 60HZ) /24VDC
Installation type	compact, remote
Protection	IP68

Place of Origin	Zhejiang China	Output Signal	4-20MA	Connection	Flange
Model NO.	LD Series	Max Temp.	120℃	Application	Wastewater, agriculture, food, and so on
Medium	Water, Air	Customized Support	OEM, ODM, OBM	Material	Aluminum Alloy
Accuracy	±0.5%	Brand Name	ZYIA	Sample	Available

Excitation	Low-frequency square-wave exciting exciting frequency 1/16 power frequency, 1/20 power frequency, 1/25 power frequency, High - frequency square-wave exciting exciting frequency 1/2 power frequency for grouting liquid measure; Exciting current can be selected for 125mAa 187.5mAa 250mAa 500mA
Digital communication port and protocol	MODBUS interface: format of RTU, RS485 HART interface: designed by the standard of HART, if you choose our handheld unit, you can display the measured value on line and set the parameters.
Low Flow Cutoff	0 to 599.99%
Damping	1-64
L Mag 4Keys and display
Self Diagnosis	The following trouble can be addressed correctly; FQH - Flow high limit alarm; FQL - Flow low limit alarm; GP - Flow empty pipe alarm; SYS - System exciting alarm
Measuring Range	0 to15m/s
Velocity	0.5mm/s
Repeatability	+/-0.1% of reading
Current output	4-20Ma(Isolated)
Load	Max.750Ω
Basic Errors	0.1% ±10μA
Pulse output	Output by field-effect transistors, the high subjected voltage is 36VDC maximum of output current is 250mA.
Pulse Rate	Frequency range:15000Hz;Pulse output range:0-100pulse/s(When higher than upper limit,pulse will lose);Pulse output value:0.001-1.000m3/cp 0.001-1.000Ltr/cp
Pulse output width	50ms
Alarm output	Alarm output junction ALMH - upper limit; ALML - lower limit; Alarm output drive: output by Darlington pipe, the high subjected voltage is 36VDC maximum of output current is 250mA
Cable Entry	2-M20*1.5, 1/2NPT (Option)
Protection Class	IP65, IP67(Option), IP68(Battery power supply)
Ambient Temperature	-10 to +65 ℃
Power Supply	80-250Vac,45-63 Hz(single-phase AC),24Vdc (20VDC-36VDC),Battery
Power Consumption	< 20W (After connecting the sensor)
