■Quick Details
|
Place of Origin |
Zhejiang |
Working Pressure |
≤1 Mpa |
Connection |
Threaded |
|
Model NO. |
LZB - Series |
Max Temp. |
60℃ |
Tube material |
Glass |
|
Medium |
Water, Liquid, Air, Gas |
Customized Support |
OEM, ODM, OBM |
Size |
3mm to 10mm |
|
Accuracy |
±4% |
Brand Name |
ZYIA |
Sample |
Available |
■Introduce

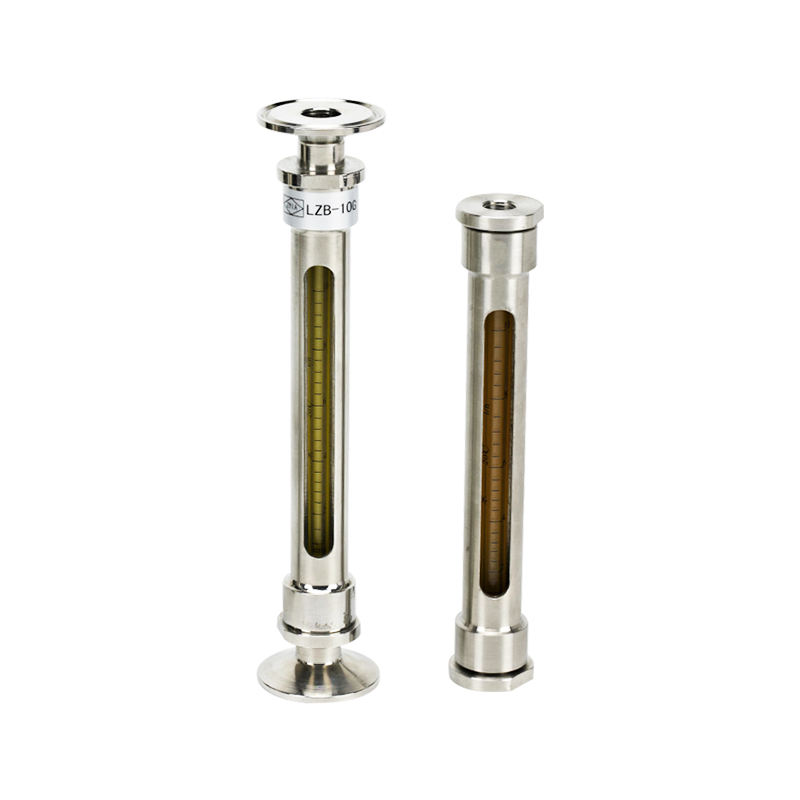

LZB - 4G/6G/10G Series Glass rotameter is used to measure the instantaneous one-way non-pulsating Fluxof liquid
It has a very good performance of corrosion resistance in measuring various kinds of acid flow
■Dimensions of LZB-4G/6G/10G Tube Type Flow Meter
|
Model |
Threaded Connection |
Hose Connection |
|||||
|
L |
a x b |
C |
D |
L1 |
a x b |
G |
|
|
LZB-4G LZB-6G |
198 |
12X123 |
035 |
1/4"BSP |
240 |
12X123 |
Ф8 |
|
LZB-10G |
198 |
14X123 |
035 |
1/2"BSP |
240 |
14X123 |
Ф11 |
