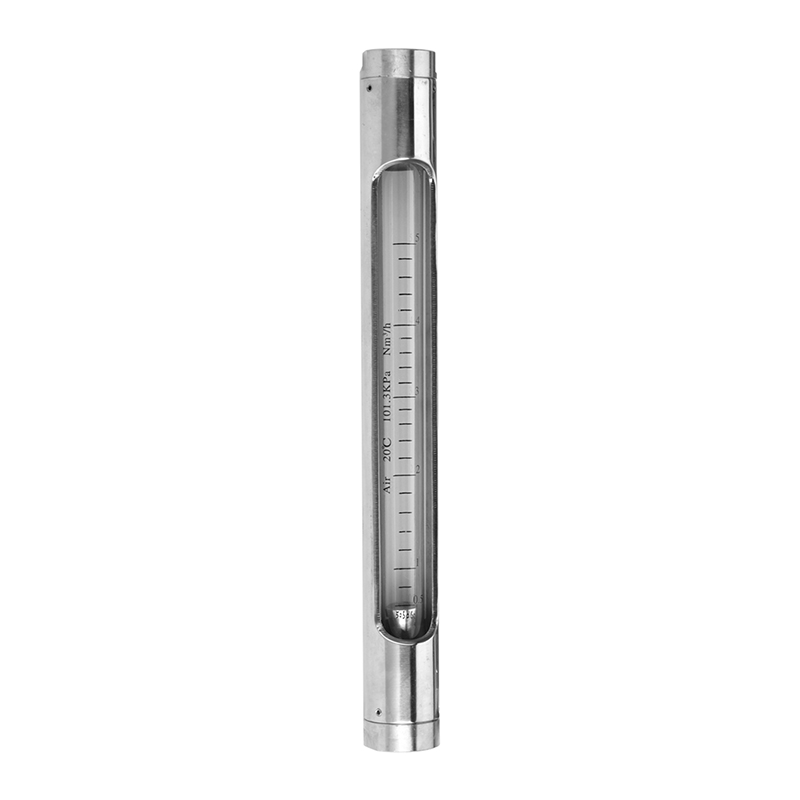

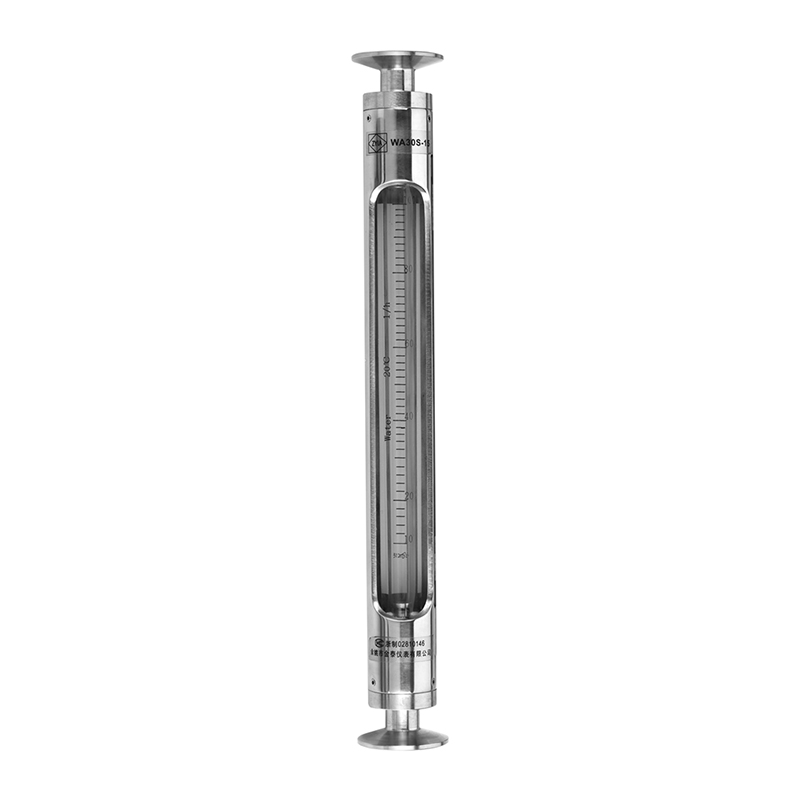

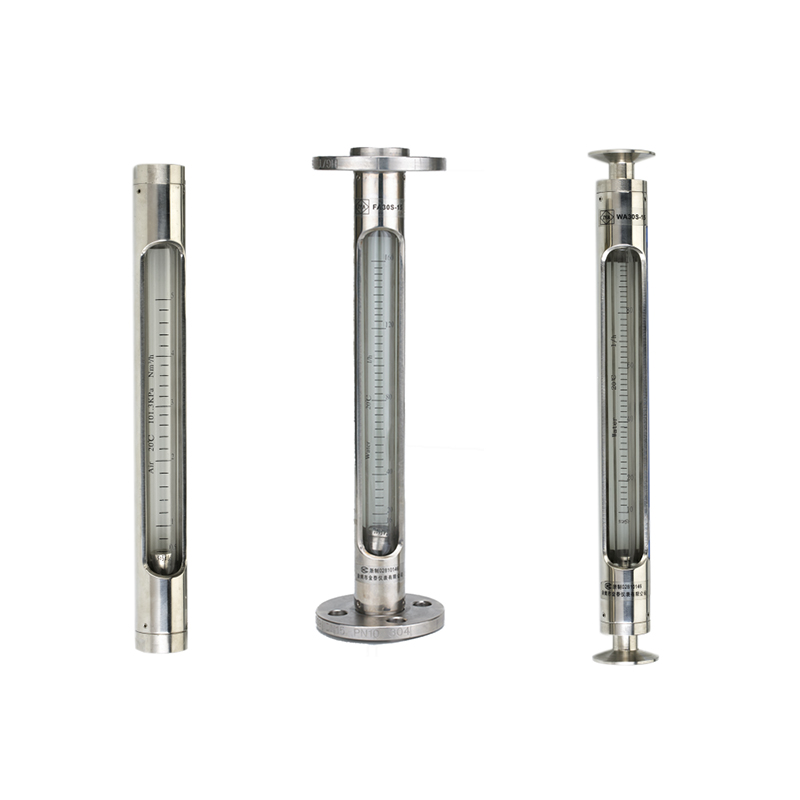

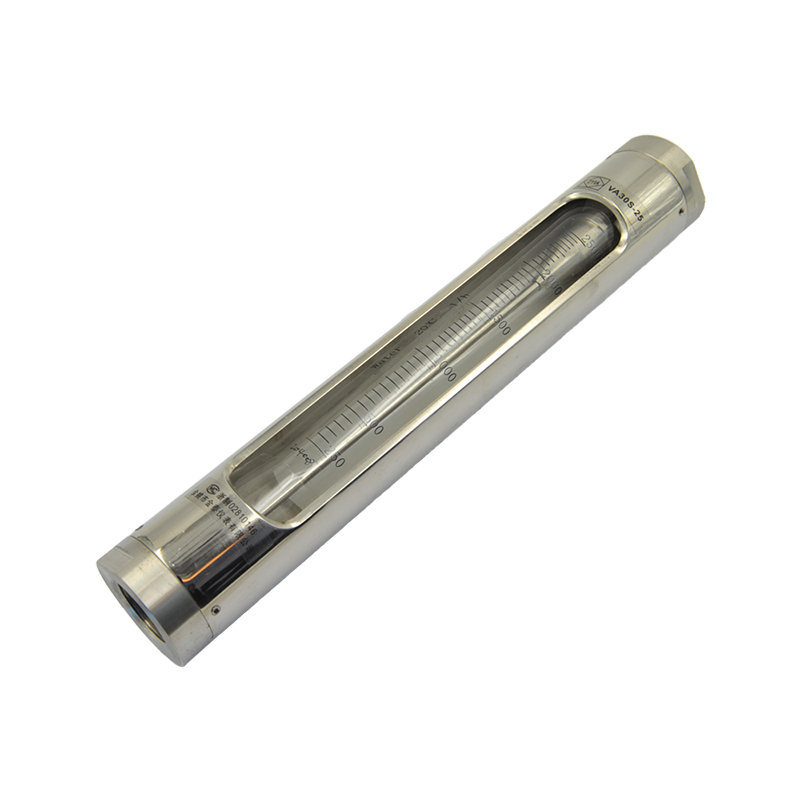

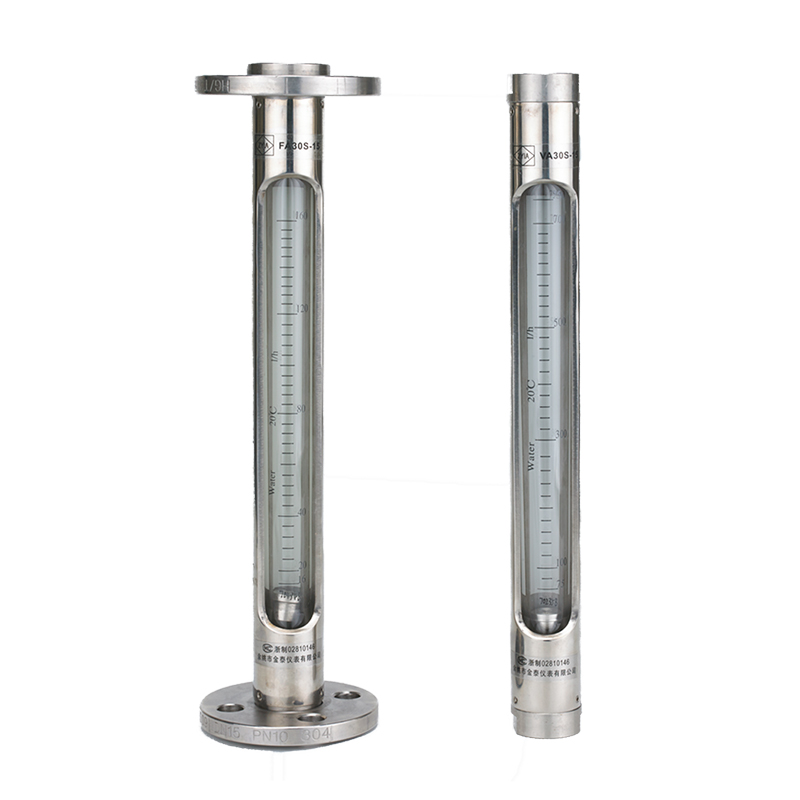

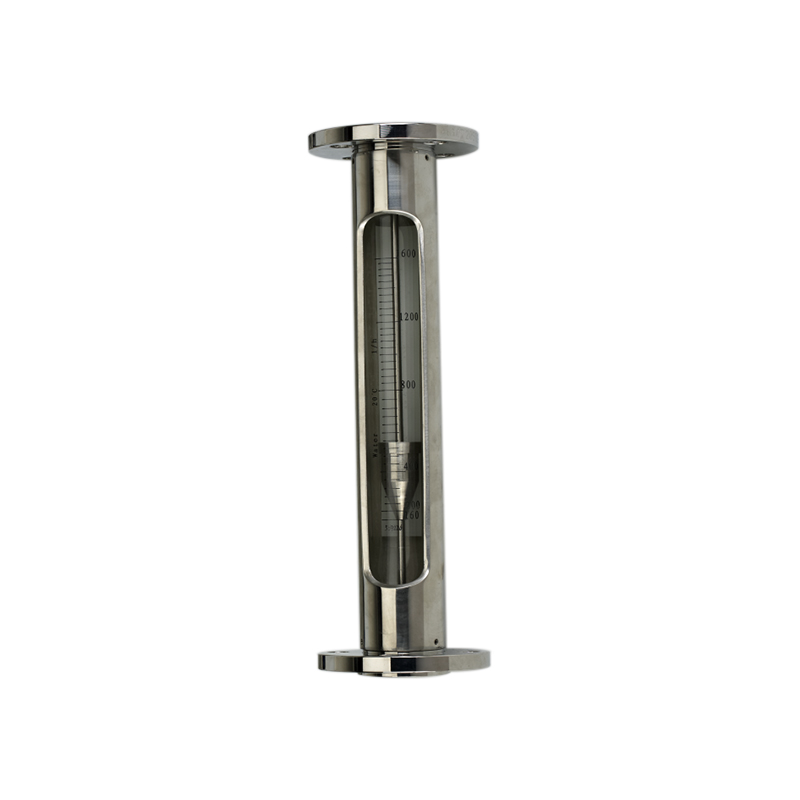

This Series of flowmeters is made of SS304. There are female Screw threads. Flange Connection and Tri-clamp connection for choice. It is featured as nice-looking and low-weight.
This Series of flowmeters is made of SS304. There are female Screw threads. Flange Connection and Tri-clamp connection for choice. It is featured as nice-looking and low-weight.
■Quick Details
|
Place of Origin |
Zhejiang China |
Working Pressure |
≤1.0 Mpa |
Connection |
Flange or Female thread, Tri-clamp |
|
Model NO. |
LZB - VA/FA/WA |
Max Temp. |
120℃ |
Diameter |
DN15-DN50mm |
|
Medium |
Water, Liquid Air, Gas |
Customized Support |
OEM, ODM, OBM |
Application |
Water treatment or food industry |
|
Accuracy |
±1.5% |
Brand Name |
ZYIA |
Sample |
Available |
■Introduce
This Series of flowmeters is made of SS304. There are female Screw threads. Flange Connection and Tri-clamp connection for choice. It is featured as nice-looking and low-weight.
■Product Features
1) Used for Water treatment or food industry and so on.
2) Light and handy structure, good looks, easy installation and maintenance.
3) All flow meters can be equipped with limit switches.
■Main Technical Parameters
|
Model |
Diameter(mm) |
Range(L/h) |
Accuracy(±%) |
Temperature |
Working Pressure |
|
|
Water 20℃ |
Air 101325Pa 20℃(m3/h) |
|||||
|
VA30S-15 FA30S-15 WA30S-15 |
15 |
4-40 6.3-63 10-100 12-120 16-160 20-200 25-250 30-300 36-360 40-400 46-460 63-630 65-650 75-750 |
0.12-1.2 0.2-2 0.3-3 0.4-4 0.5-5 0.6-6 0.8-8 0.9-9 1.2-12 2-20 |
1.5 |
-20℃-+120℃ |
≤1.0MPa |
|
VA30S-25 FA30S-25 WA30S-25 |
25 |
40-400 50-500 63-630 80-800 100-1000 120-1200 160-1600 200-2000 250-2500 300-3000 |
1.6-16 2-20 2.5-25 3-30 4-40 5-50 6-60 |
|||
|
VA30S-40 FA30S-40 WA30S-40 |
40 |
160-1600 200-2000 250-2500 300-3000 400-4000 500-5000 |
5-50 6-60 8-80 9-90 12-120 |
≤0.9MPa |
||
|
VA30S-50 FA30S-50 WA30S-50 |
50 |
250-2500 300-3000 400-4000 500-5000 630-6300 800-8000 1000-10000 1500-15000 4000-16000 |
10-100 12-120 16-160 20-200 30-300 |
≤0.7MPa |
||

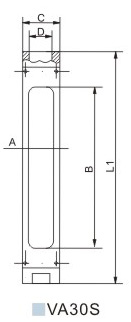

■LZB -VA 30S Glass Tube Rotameter Outline Dimensions(mm)
|
Diameter |
Display window Size a*b |
VA30S Threaded Connection |
||
|
L1 |
C |
D |
||
|
15 |
26*236 |
344 |
φ38 |
1/2” BSP |
|
25 |
34*226 |
348 |
φ55 |
1” BSP |
|
40 |
44*226 |
370 |
φ70 |
1 1/2” BSP |
|
50 |
60*216 |
380 |
φ90 |
2” BSP |

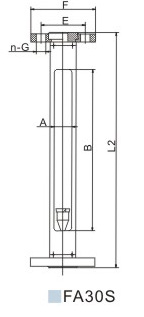

■LZB -FA 30S Glass Tube Rotameter Outline Dimensions(mm)
|
Diameter(mm) |
Display window Size a*b |
FA30S Threaded Connection |
|||
|
L1 |
E |
F |
n-G |
||
|
15 |
26*236 |
348 |
Φ65 |
Φ95 |
4-Φ14 |
|
25 |
34*226 |
348 |
Φ85 |
Φ115 |
4-Φ14 |
|
40 |
44*226 |
370 |
Φ110 |
Φ145 |
4-Φ18 |
|
50 |
60*216 |
370 |
Φ125 |
Φ160 |
4-Φ18 |

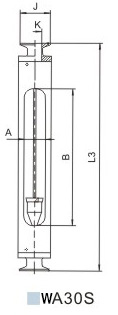

■LZB -WA 30S Glass Tube Rotameter Outline Dimensions(mm)
|
Diameter(mm) |
Display window Size a*b |
WA30S Threaded Connection |
||
|
L3 |
J |
K |
||
|
15 |
26*236 |
376 |
50.5 |
3/4” |
|
25 |
34*226 |
376 |
50.5 |
1” |
|
40 |
44*226 |
376 |
50.5 |
1 1/2” |
|
50 |
60*216 |
376 |
64 |
2” |
