■Quick Details
|
Place of Origin |
Zhejiang |
Flout |
SS316 |
Connection |
Tri - Clamp |
|
Model NO. |
LZM -GK Series |
Sample |
Available |
Body |
Acrylic |
|
Medium |
Gas, Air, Water |
Customized Support |
OEM, ODM, OBM |
Diameter |
DN15mm-DN50 |
|
Accuracy |
±4% |
Brand Name |
ZYIA |
Fitting |
ABS |
|
Working Pressure |
≤ 1 Mpa |
Max Temp. |
60℃ |
O-ring |
Silicon rubber |
■Introduce

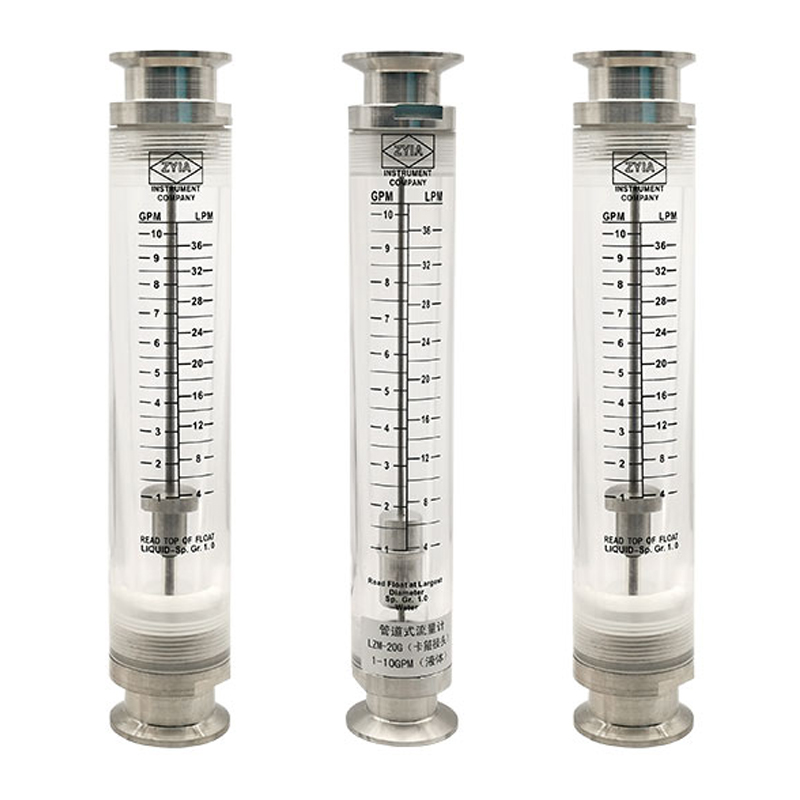

LZM - GK real value in general purpose rotameters. LZM - GK is Tri -Clamp Connection.it will be a long life use,
■Product Features
1. Tough machined acrylic meter body, highly polished to a clear finish.
2. Direct reading permanent scale.
4.Acceptable in direct sunlight applications
■Technical Parameters of LZM-GK Series Tube Type Flow Meter
1.Tough machined acrylic meter body, highly polished to a clear finish.
2.Direct reading permanent scale.
3.White back reflector for easy reading.
4.316 stainless steel rod guided flouts.
5.Acceptable in direct sunlight applications.

|
Model |
Range |
Connection |
Accuracy |

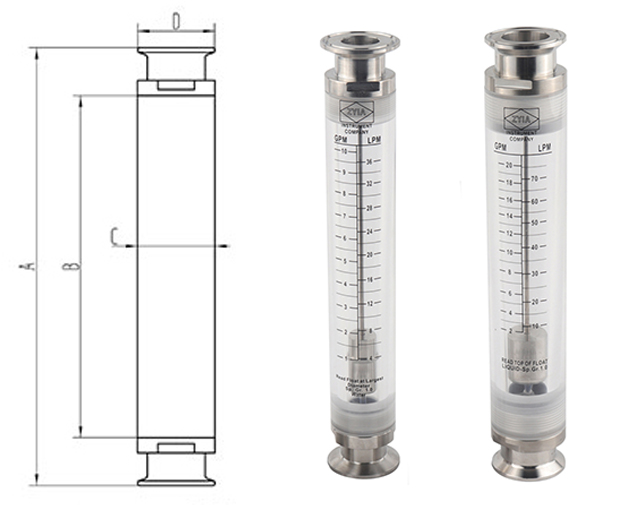

Size ( mm ) |
|||||
|
GPM (Liquid) |
LPM (Liquid) |
Nm3/h(Gas) |
A |
B |
C |
D |
|||
|
LZM-15GK |
0.1-1 |
0.5-4 |
0.8-8 1.6-16 4-40 |
Tri-Clamp |
±4% |
238 |
180 |
Ф32 |
Ф50.5 |
|
0.2-2 |
1-7 |
||||||||
|
0.5-5 |
1.8-18 |
||||||||
|
1.5-9 |
400-2000LPH |
||||||||
|
LZM-20GK |
1-10 |
4-36 |
6-60 |
Tri-Clamp |
298 |
236 |
Ф45 |
Ф50.5 |
|
|
|
100-1000LPH |
||||||||
|
LZM-25GK |
1-10 |
4-36 |
6-60 ☆15-140 25-250 80-400 |
Tri-Clamp |
298 |
235 |
Ф51 |
Ф50.5 Ф64 Ф77.5 |
|
|
1-15 |
5-60 |
||||||||
|
2-20 |
10-70 |
||||||||
|
5-30 |
20-110 |
||||||||
|
5-40 |
20-150 |
||||||||
|
5-45 |
20-170 |
||||||||
|
20-60 |
80-220 |
||||||||
|
LZM-50GK |
20-80 |
80-300 |
100-500 120-600 300-650 400-1200 500-1400 |
Tri-Clamp |
350 |
270 |
Ф75 |
Ф64 Ф77.5 |
|
|
20-100 |
80-360 |
||||||||
|
40-120 |
150-450 |
||||||||
|
50-150 |
190-560 |
||||||||
|
60-200 |
220-750 |
||||||||
■The Material of LZM-GK Series Flow Meter
|
Fitting |
Flout |
O-ring |
|
SS304 |
√1.SS 2.Agata ball 3.PTFE |
√1.Silicon rubber 2.Fluorin rubber 3.Butyl |
Note: Mark with √, the material of the Flow Meter is the General Configuration.
