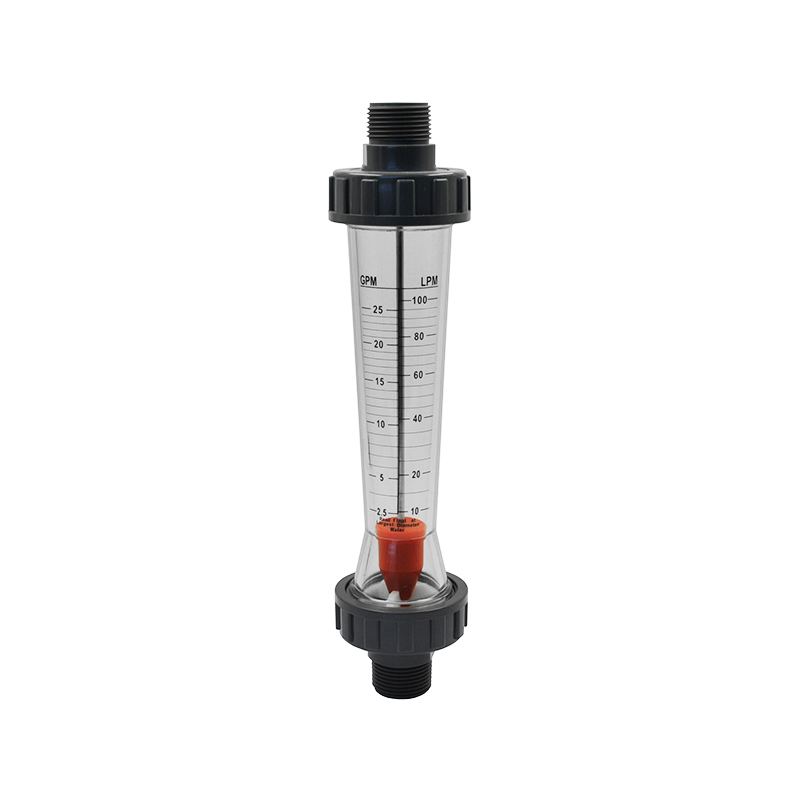

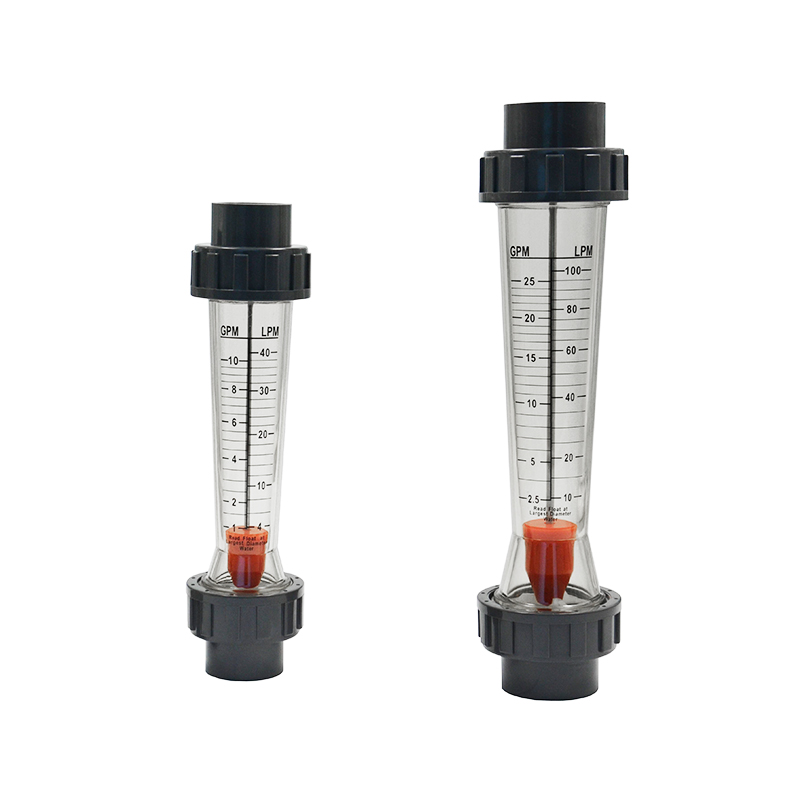

Polysulfone (PSU) or PC body, fittings made of PVC ABS or Ss Flouts Capable of withstanding higher temperatures, Thread joint and panel-mounted fittings are easy to install, economical and endurable.
Polysulfone (PSU) or PC body, fittings made of PVC ABS or Ss Flouts Capable of withstanding higher temperatures, Thread joint and panel-mounted fittings are easy to install, economical and endurable.
■Quick Details
|
Place of Origin |
Zhejiang |
Flout material |
SS, ABS |
Connection |
Joint, Male |
|
Model NO. |
LZS - E/G Series |
Connection Material |
ABS |
Tube material |
PC, PSU |
|
Medium |
Water, Liquid |
Customized Support |
OEM, ODM, OBM |
Diameter |
DN15mm-65mm |
|
Accuracy |
±4% |
Brand Name |
ZYIA |
Install |
Inline |
|
Working Pressure |
≤ 0.6 Mpa |
Max Temp. |
60℃ |
O-ring |
EPDM |
■Introduce
LZS - Series is a new reformation refer to plastic flow meter. Polysulfone(PSU) or PC body,Fittings made of
■Product Features
1) Simple structure in inline type ,easy in installation and maintation.
2) Chemically resistant molded polycarbonate
3) Capable of withstanding weak chemicals
4) Inline type, bottom in,top out,direct reading scale.
■LZS-E/G Datasheet
|
Model |
DN |
Range |
Accuracy |
Temp℃ |
Pressure |
||
|
GPM |
LPM |
m3/h |
|||||
|
LZS-15E |
15 |
0.1-1 |
0.5-4 1-7 1.8-18 |
10-100l/h 16-160l/h 25-250l/h 40-400l/h 50-500l/h 60-600l/h 100-1000l/h |
±4% |
0-60 |
≤0.6MPa |
|
LZS-15G |
0-100 |
||||||
|
LZS-15EC |
15 |
0.1-1 0.2-2 0.5-5 |
0.5-4 1-7 1.8-18 |
0-60 |
|||
|
LZS-15GC |
0-100 |
||||||
|
LZS-25E |
25 |
0.8-8 1-10 |
3-30 4-40 |
0.25-2.5 0.16-1.6 0.1-1 |
0-60 |
||
|
LZS-25G |
0-100 |
||||||
|

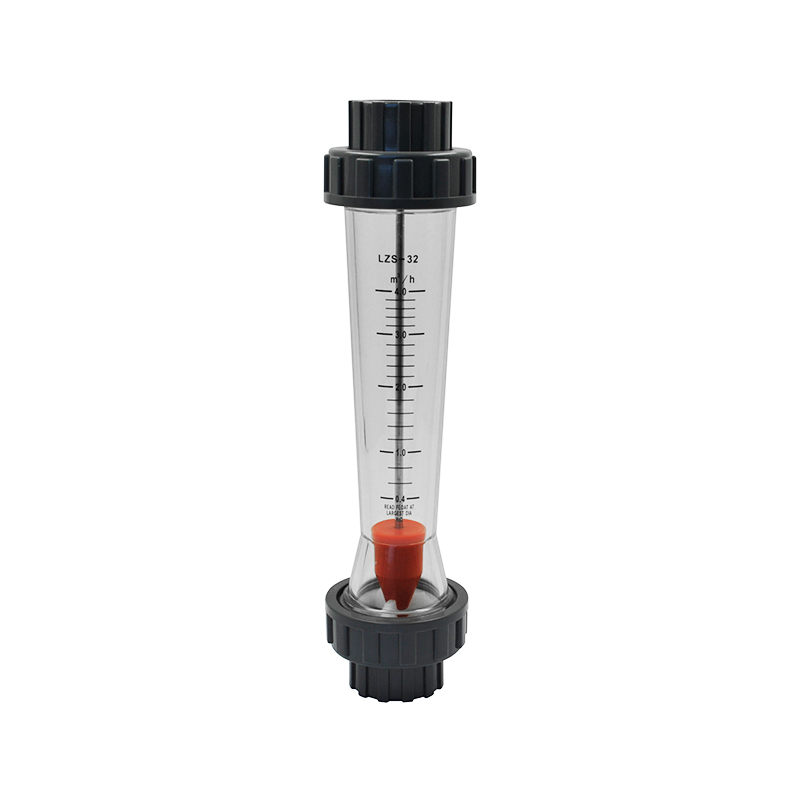

LZS-32E |
32 |
1.2-12 2-20 2.5-25 |
5-50 8-80 10-100 |
0.4-4 0.6-6 |
0-60 |
||
|
LZS-32G |
0-100 |
||||||
|

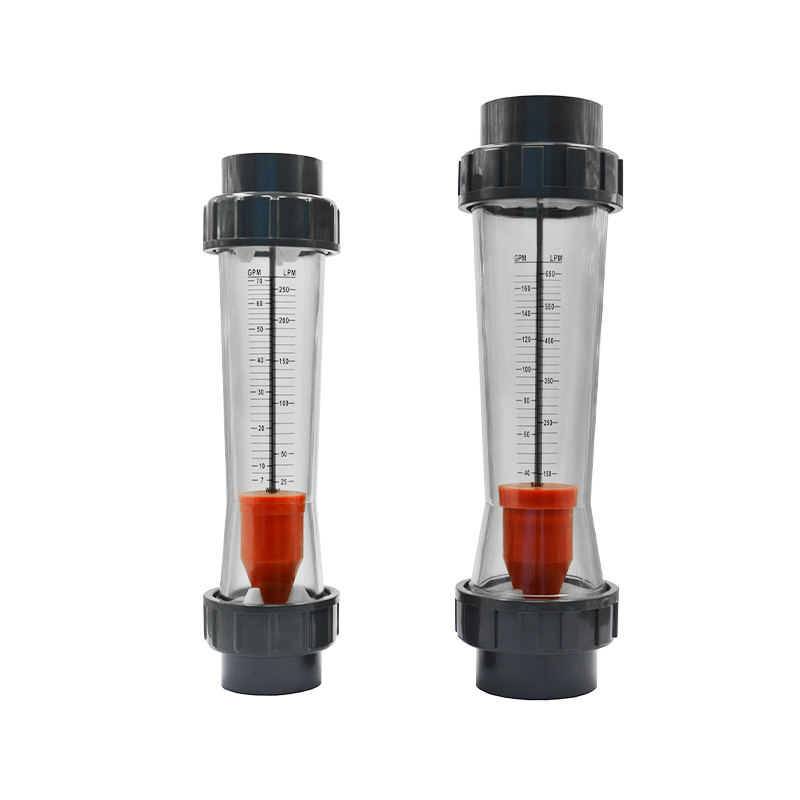

LZS-50E |
50 |
2.5-25 5-45 7-70 |
10-100 20-180 25-250 |
0.4-4 0.6-6 1-10 1.6-16 |
0-60 |
||
|
LZS-50G |
0-100 |
||||||
|
LZS-65E |
65 |
25-110 40-160 50-250 |
80-400 150-650 200-1000 |
5-25 8-40 12-60 |
0-60 |
||
|
LZS-65G |
0-100 |
||||||

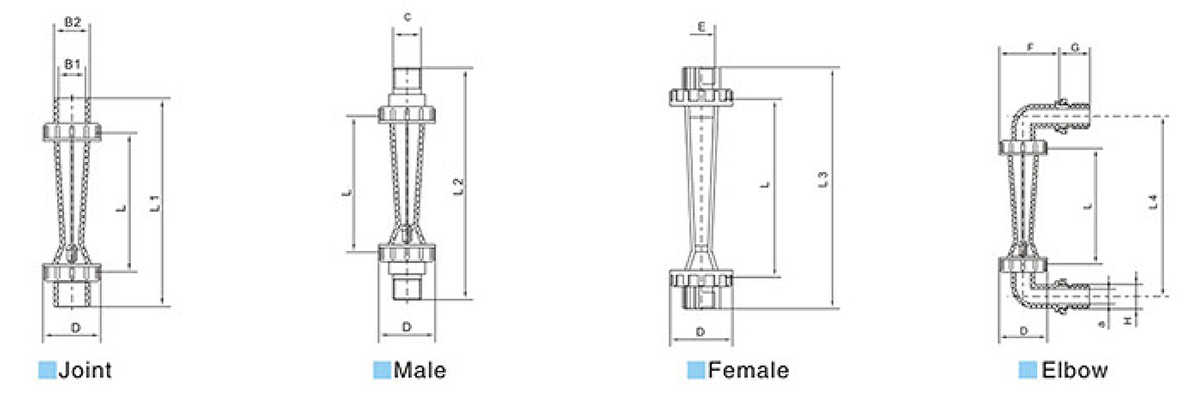

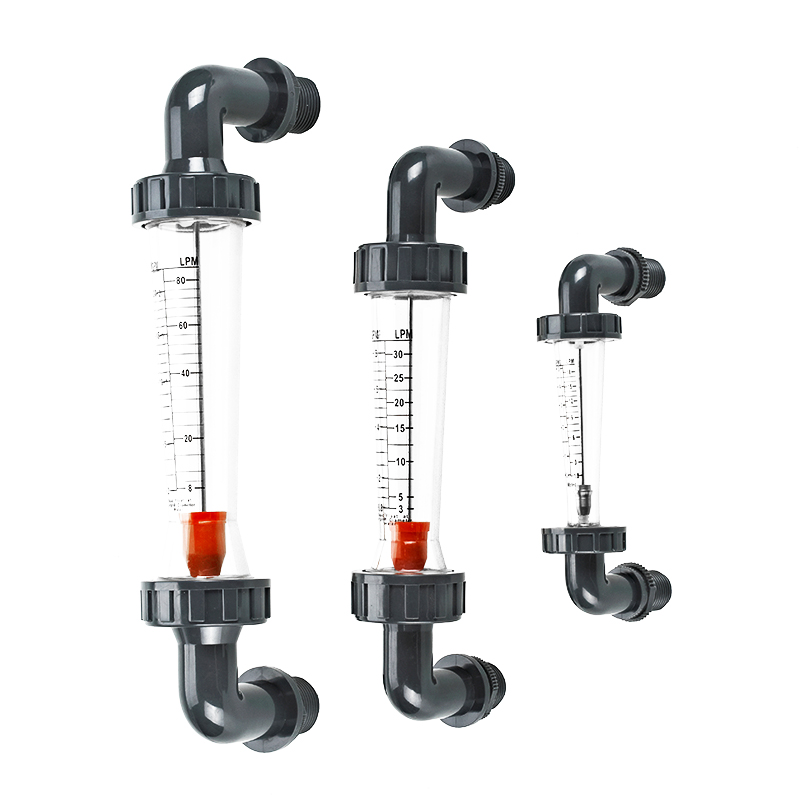

■LZS-E/G Dimensions for Installation
|
Model |
L |
D |
Joint |
Male |
Female |
Elbow |
||||||||
|
L1 |
B1 |
B2 |
L2 |
C |
L3 |
E |
L4 |
F |
G |
A |
H |
|||
|
LZS-15E LZS-15G |
170 |
Φ50 |
220 |
Φ20 |
Φ27.5 |
240 |
1/2"BSP 1/2"NPT |
220 |
1/2"BSP 1/2"NPT |
230 |
56 |
27 |
Φ13 |
1/2"BSP 1/2"NPT |
|
LZS-15ED LZS-15GD |
100 |
Φ42 |
150 |
Φ20 |
Φ26 |
170 |
1/2"BSP 1/2"NPT |
/ |
/ |
155 |
52 |
27 |
Φ13 |
1/2"BSP 1/2"NPT |
|
LZS-15EC LZS-15GC |
160 |
Φ50 |
210 |
Φ20 |
Φ26 |
225 |
1/2"BSP 1/2"NPT |
210 |
1/2"BSP 1/2"NPT |
220 |
56 |
27 |
Φ13 |
1/2"BSP 1/2"NPT |
|
LZS-25E LZS-25G |
170 |
Φ59 |
230 |
Φ32 |
Φ39 |
250 |
3/4"NPT |
225 |
3/4"BSP 3/4"NPT |
270 |
70.5 |
28 |
Φ20 |
3/4"BSP 3/4"NPT |
|
LZS-32E LZS-32G |
225 |
Φ72 |
290 |
Φ40 |
Φ49 |
310 |
1"NPT |
290 |
1"BSP 1"NPT |
345 |
86 |
35 |
Φ26 |
1"BSP 1"NPT |
|
LZS-50E LZS-50G |
290 |
Φ98 |
375 |
Φ63 |
Φ73 |
400 |
2"NPT |
370 |
2"NPT |
440 |
109 |
40 |
Φ45 |
2"BSP 2"NPT |
|
LZS-65E LZS-65G |
325 |
Φ120 |
420 |
Φ75 |
Φ89 |
445 |
21/2"NPT |
420 |
21/2"NPT |
/ |
/ |
/ |
/ |
/ |
Note:

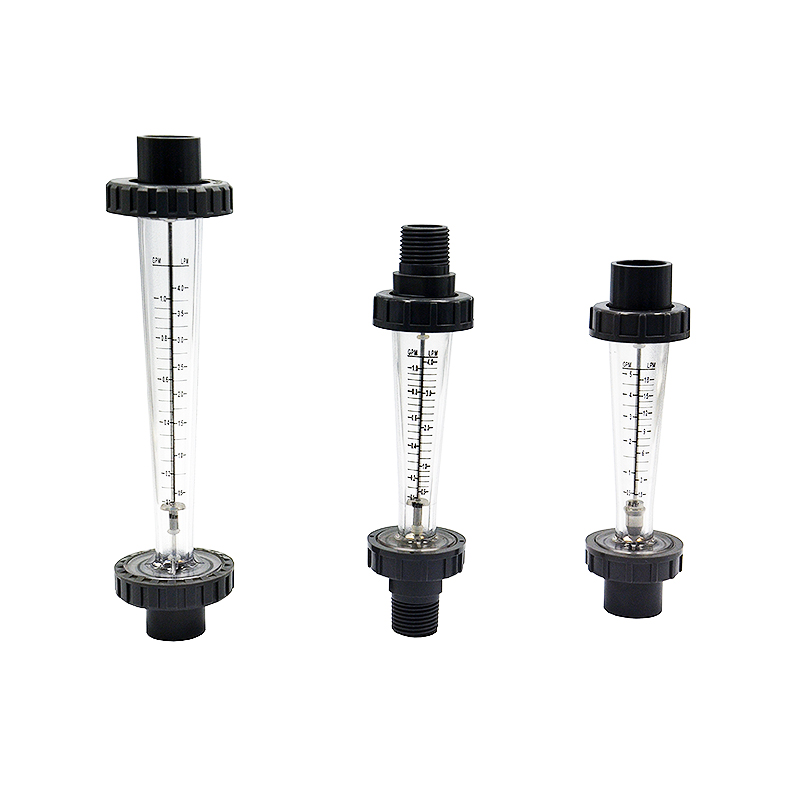

* LZS-15E、LZS-15G which flout is ABS
* LZS-15ED、LZS-15GD、LZS-15EC、LZS-15GC which flout is stainless steel 316
