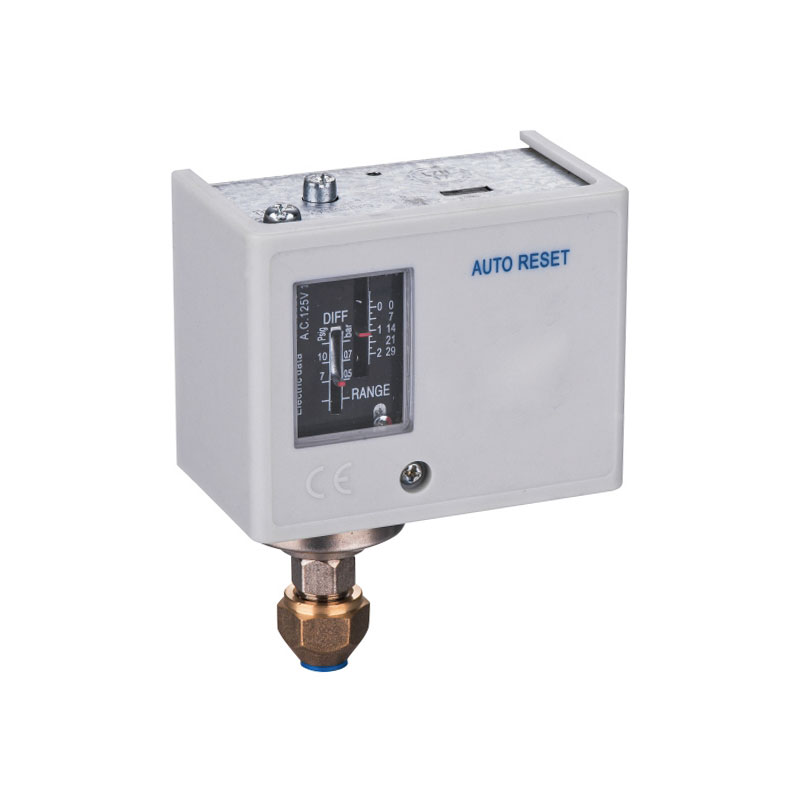

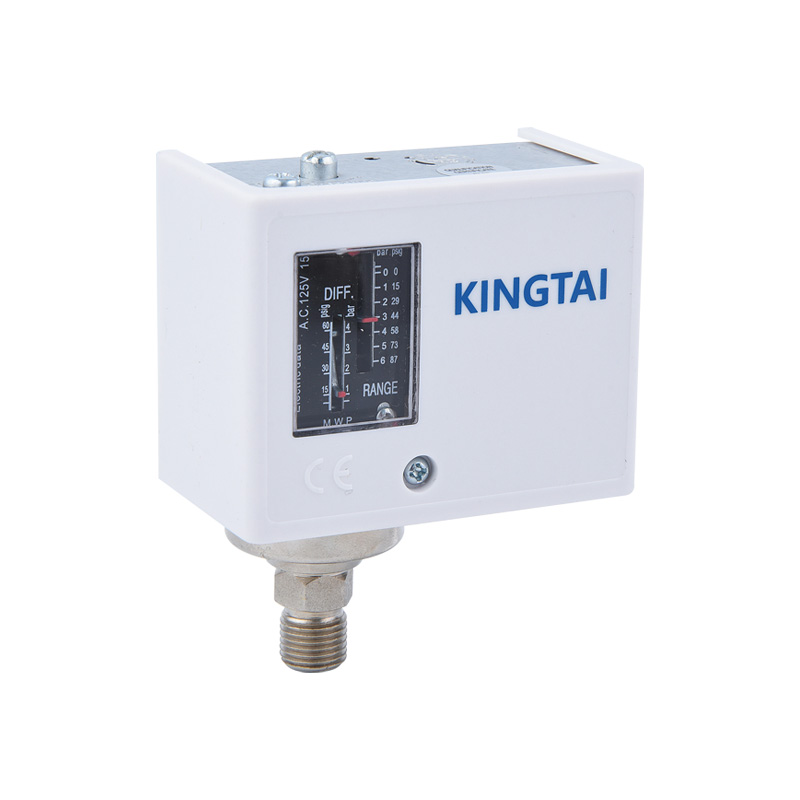

Single Pressure Control

Single Pressure Control is a high-performance pressure management product designed for industrial automation, fluid transport, and precision control systems. With a single pressure target at its core, it aims to achieve precise, stable, and reliable pressure regulation under various complex operating conditions. Unlike multi-point or multi-pressure control systems, it maintains system pressure within preset values ​​or safe ranges through precise control. This single-target approach reduces system complexity, improves stability, and simplifies operation and maintenance. This product not only provides precise pressure regulation in industrial piping systems but also offers stable pressure conditions in demanding research and laboratory environments. Through an intelligent regulation mechanism, Single Pressure Control maintains pressure near the target value, achieving high-precision management. In industrial applications, it can control pressure fluctuations within ±0.5%, ensuring stable operation of critical equipment.

Product Description

Features:

● Scale plate use “bar" & “psig" units.

● Could be use “Mpa”、” kgf/cm’” units also as customer requirement.

● Connection could as customer require use British unit flare(E)、 solder(S)and capillary(C), such as HLP506E.

● Ammonia refrigerant model added a code B, such as HLP506B.

Specification:

Model

Pressure Range(bar)

Differential Pressure(bar)

Factory Setting(ba)

Man.gas tight test pressure(bar)

Fig.1

Fig.2

HLP502

0.5-2

0.2-0.7



0.5

16.5

HLP503

0.5-3

0.85-1.5

2

1

16.5

HLP508

0.5~6

0.6-4

3

2

16.5

HLP506M

0.5~5.5

≤1

Manual resst

2

16.5

HLP110

1~10

1~3

6

5

16.5

HLP516

5-16

2-5

10

8

33

HLP520

5-20

2-5

16

14

33

HLP530D

5-30

3-10

20

15

33

HLP530

8-30

3~5 Fixstian

20

15-17

33

HLP630M

B-30

≤5

20

Manusl reset

32

Rated Voltage(V)

125V

250V

24V

Rated Amps(A)

A.C.

A.C.

D.C.

Non-Inductive Current

20A

10A

10A

Inductive Current

Full Load Current

15A

8A

8A

Locked Roter

72A

64A

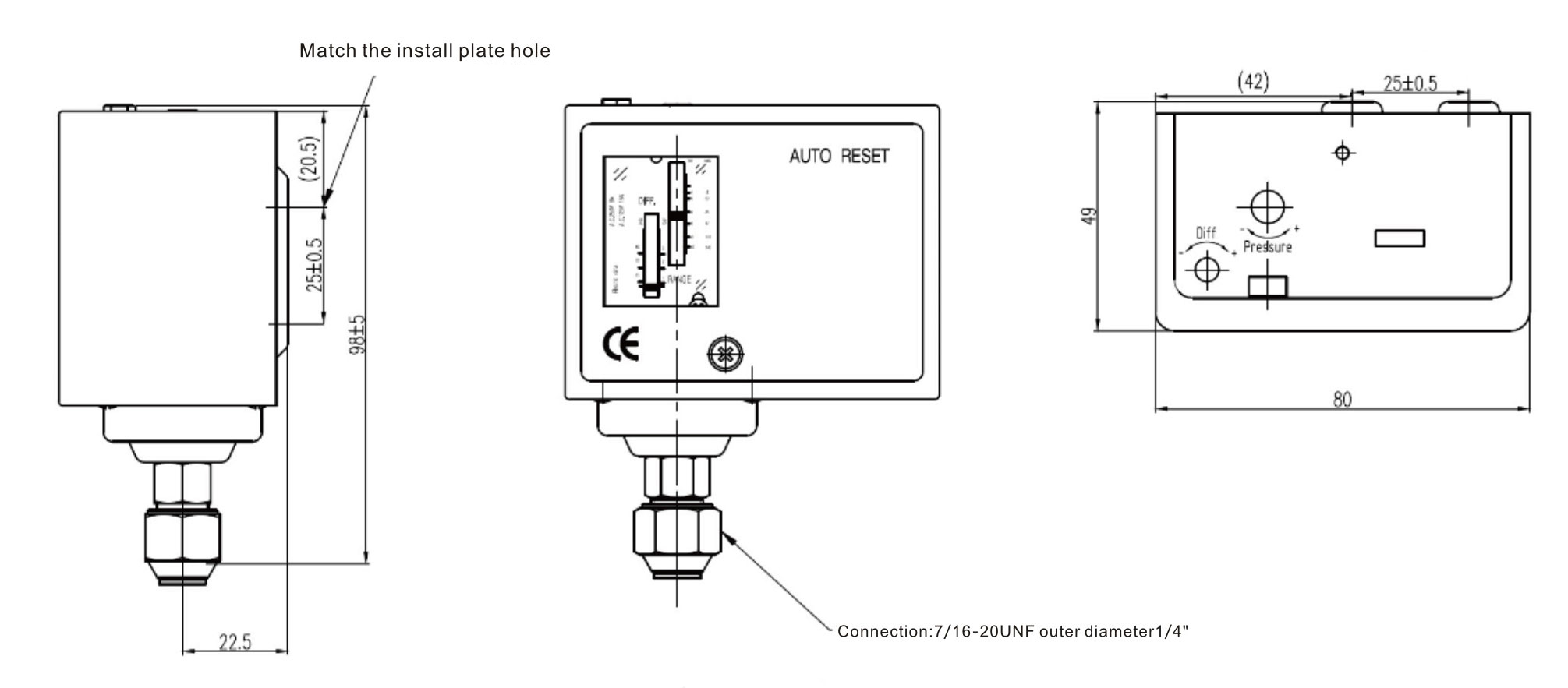

Drawing:

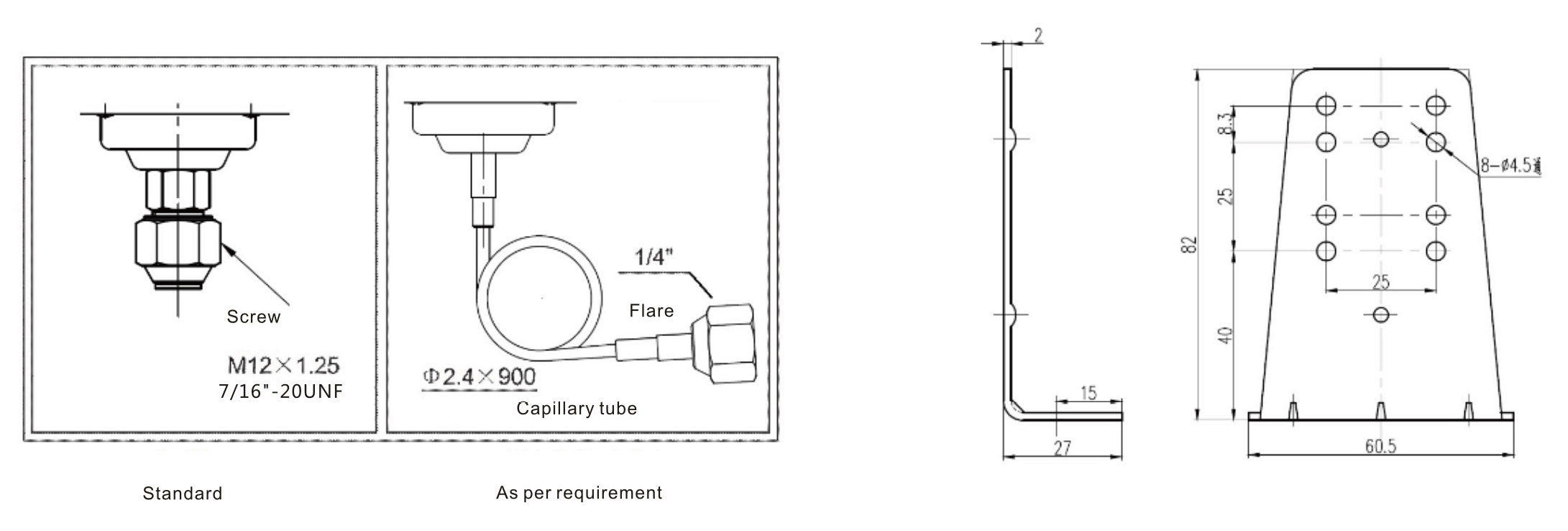

Connection:

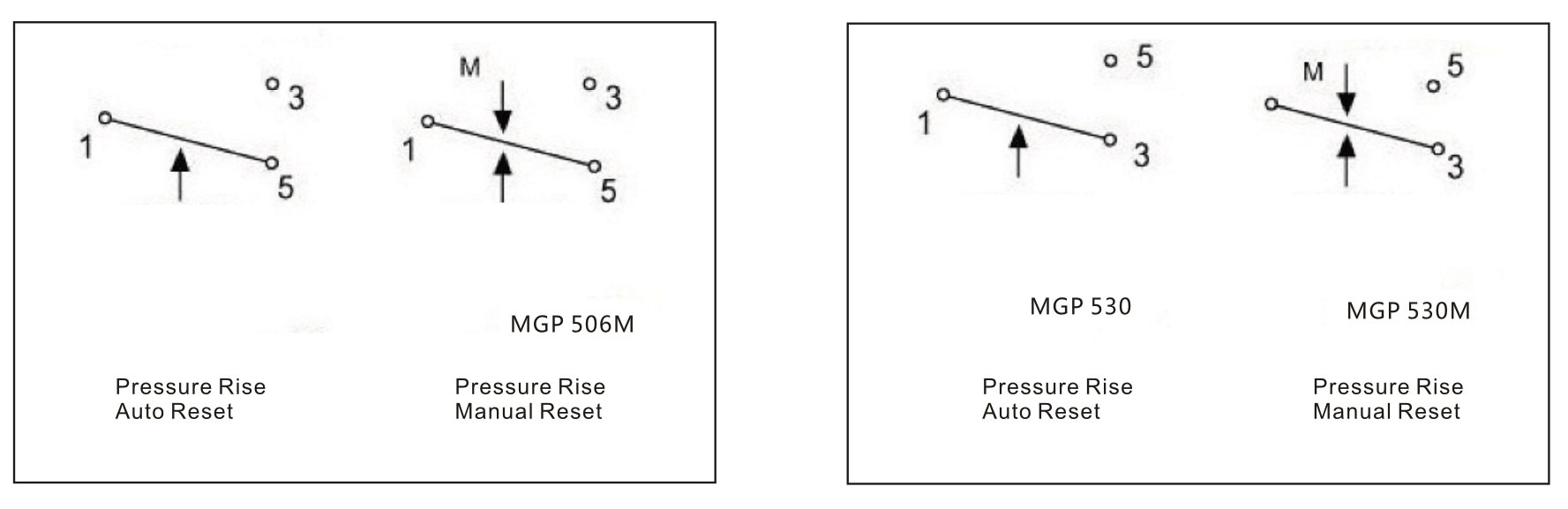

Switch Contact Form:
