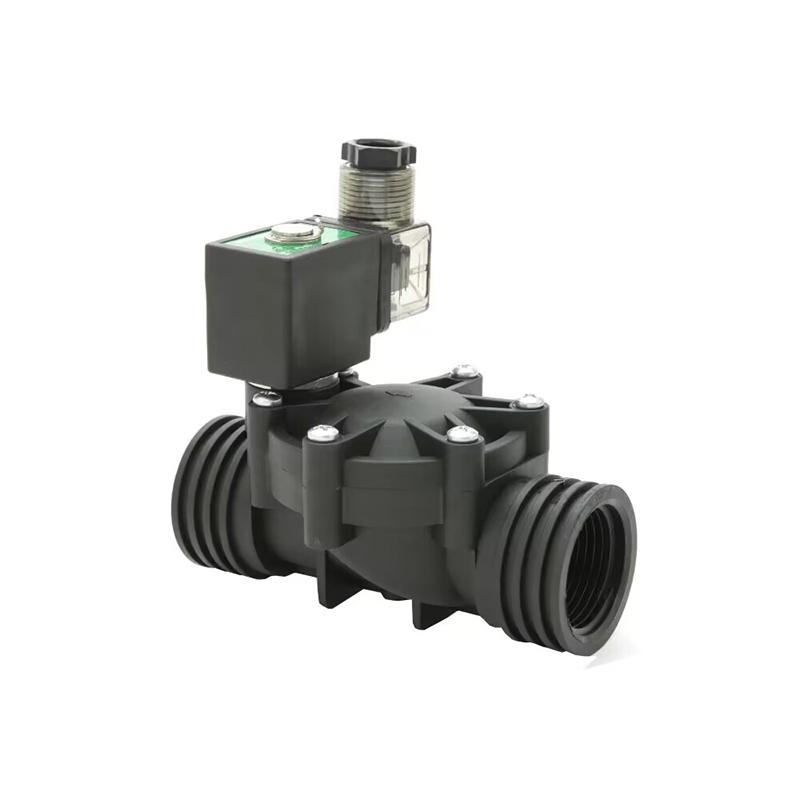

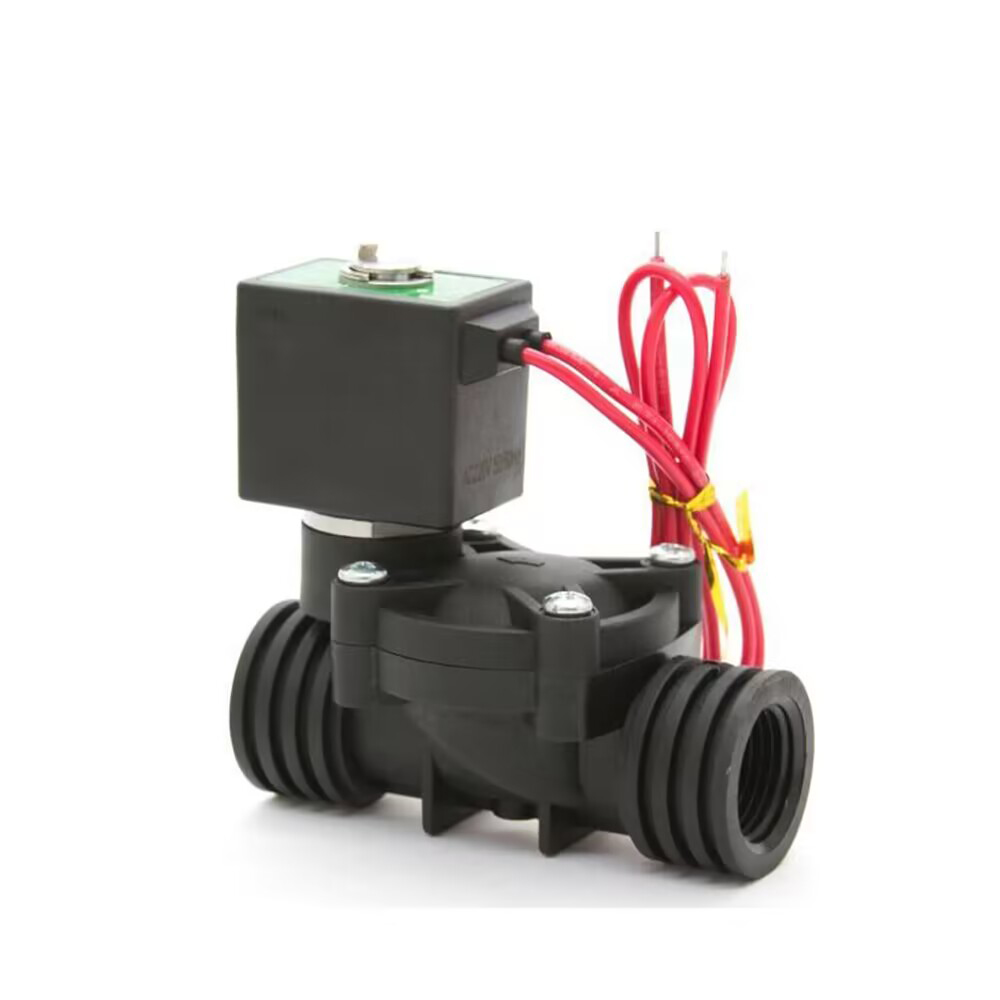

Mode of action:2/2-way
Operating type: normally closed, normally opened
Body material: PA
Sealing material and temperature: NBR≤80C
Rating voltage: AC220V AC110V DC24V DC12V
Protection class: IP65
Medium: gas, water, air, oil≤2OCST
Mode of action:2/2-way
Operating type: normally closed, normally opened
Body material: PA
Sealing material and temperature: NBR≤80C
Rating voltage: AC220V AC110V DC24V DC12V
Protection class: IP65
Medium: gas, water, air, oil≤2OCST
■

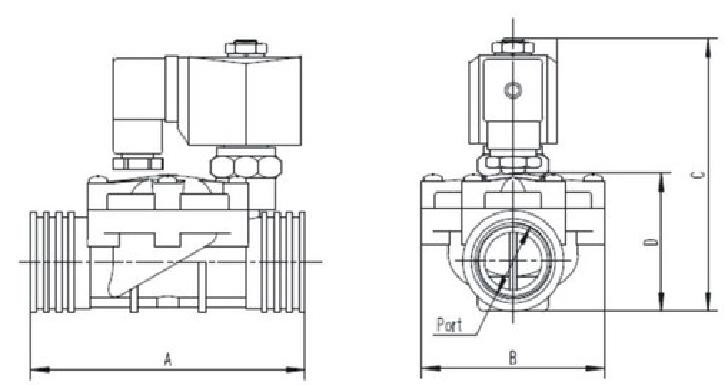

| Model | Orifice | Cv | Working Pressure(bar) | A | B | C(NC) | D(NC) | C(NO) | D(NO) | ||
| AC | DC | ||||||||||
| PP-15 | 15 | 4.6 | 0.3-10 | 0.3-7 | 88 | 50 | 89 | 44.5 | 108 | 44.5 | |
| PP-20 | 20 | 8.5 | 0.3-10 | 0.3-7 | 98 | 67 | 94 | 51 | 113 | 51 | |
| PP-25 | 25 | 12 | 0.3-10 | 0.3-7 | 120 | 80 | 100.5 | 60 | 129.5 | 60 | |
