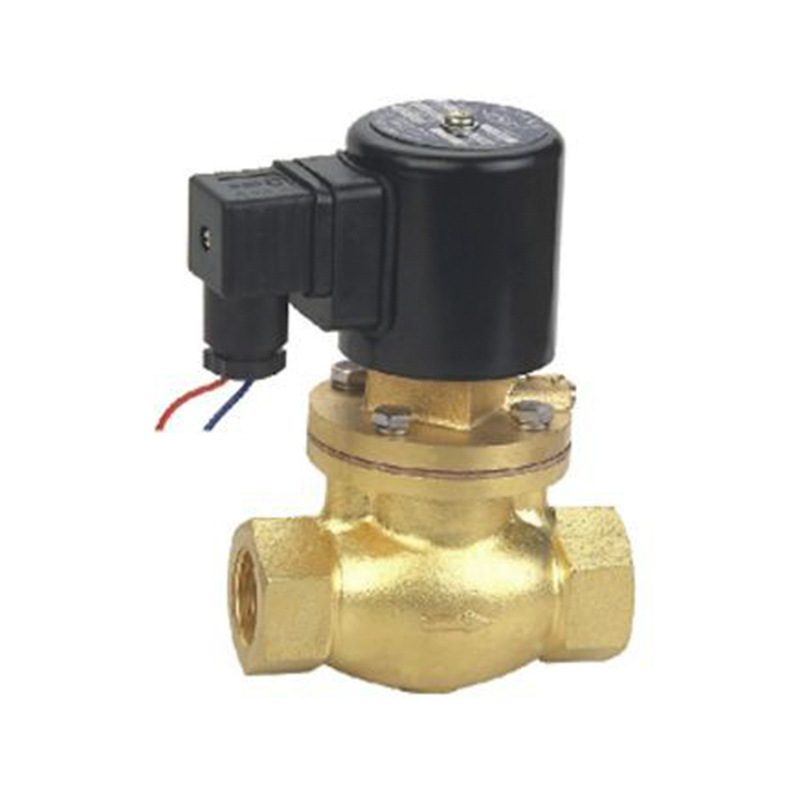

Application:
It is applicable for neutral high temperature gas and liquid for either automatic or remote control of vapor piping toggling on/off.
Application:
It is applicable for neutral high temperature gas and liquid for either automatic or remote control of vapor piping toggling on/off.

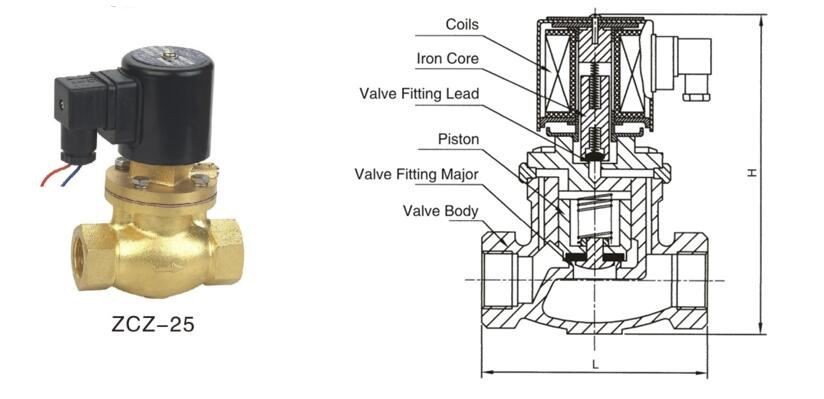

■Structure Characteristics
Pilot-operated valves with twice opening operation are featured in small size Selected the piston structure and valves sealing of Teflon which featured in high performance and
■Function Type
Normally Closed (N/C), Normally Open (N/O)
■Technical Parameters
|
Diameter(mm) |
15,20,25,32,40,50,65,80,100 |
|
Working Pressure |
0.04-1.0Mpa |
|
Medium |
Steam, High temp Gas |
|
Medium Temperature |
-5℃— -180℃ |
|
Rating Voltage |
AC:380,220,36,24 DC:220,110,36,24 |
|
Power |
DC: 15-50 24W DN: 65-100 50W |
■Installation Specification
|
Model |
Cv |
L(mm) |
H(mm) |
Connection |
Material |
|
ZCZ-15 |
3.7 |
81 |
150 |
G1/2" Female |
Copper body: In case you choose |
|
ZCZ-20 |
7 |
101 |
160 |
G3/4" Female |
|
|
ZCZ-25 |
11 |
110 |
170 |
G1" Female |
|
|
ZCZ-32 |
18 |
136 |
195 |
G11/4" Female |
|
|
ZCZ-40 |
24 |
130 |
200 |
G11/2" Female |
|
|
ZCZ-50 |
35 |
140 |
210 |
G2" Female |
|
|

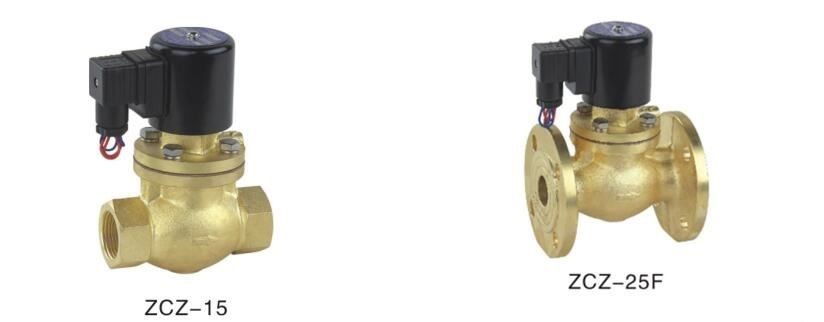

ZCZ-15F |
3.7 |
120 |
170 |
Flange 4 hole φ14 Hole Diameter φ65 |
|
|
ZCZ-25F |
11 |
125 |
193 |
Flange 4 hole φ14 |
|
|
ZCZ-32F |
14 |
140 |
250 |
Flange 4 hole φ18 |
|
|
ZCZ-40F |
24 |
138 |
233 |
Flange 4 hole φ18 |
|
|
ZCZ-50F |
35 |
154 |
244 |
Flange 4 hole φ18 |
Body: Cast iron |
|
ZCZ-65F |
53 |
241 |
320 |
Flange 4 hole φ18 |
|
|
ZCZ-80F |
82 |
269 |
330 |
Flange 4 hole φ18 |
|
|
ZCZ-100F |
128 |
343 |
370 |
Flange 4 hole φ18 |
