LZM-25Z Acrylic Flow Meter with Alarm

Philosophy:

Switch on/off is actually magnetic flout contact open/close after magnetron bistable exciting. Alarm sound and light are based on the switch position of on/off linked to relays among other parts and elements.

PREV：LZM-25G Inline Round Tube Acrylic Flow Meter with Alarm
NEXT：LZS Plastic Tube Flow Meter with Alarm

Product Description

Functions and Applications

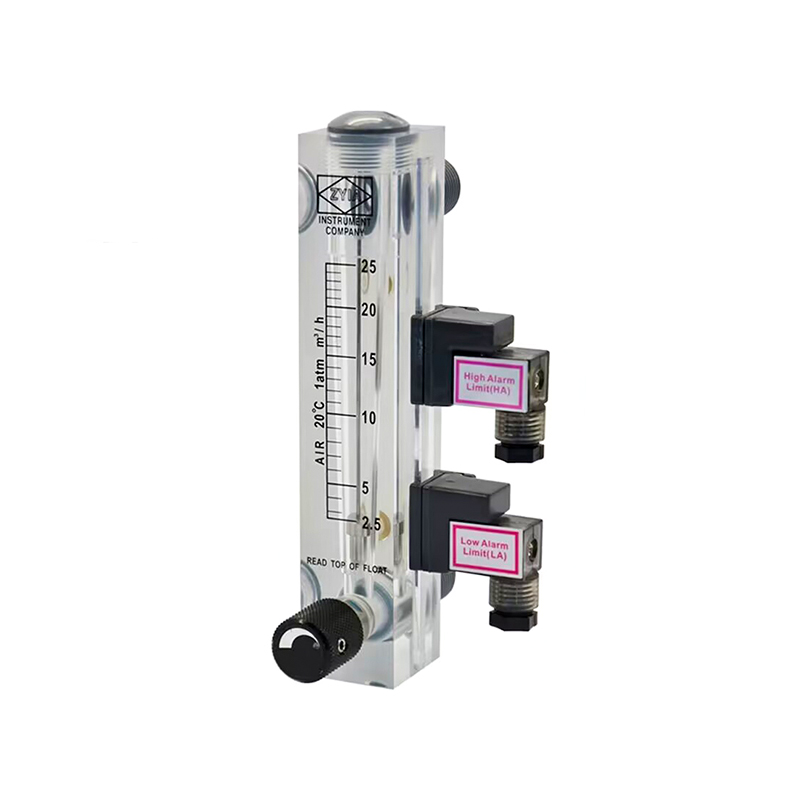

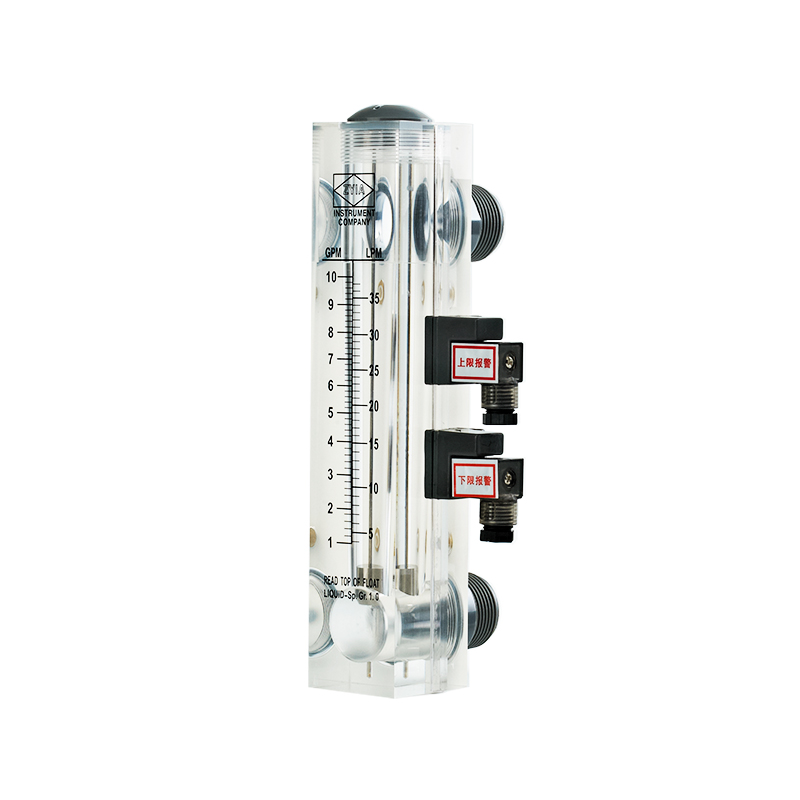

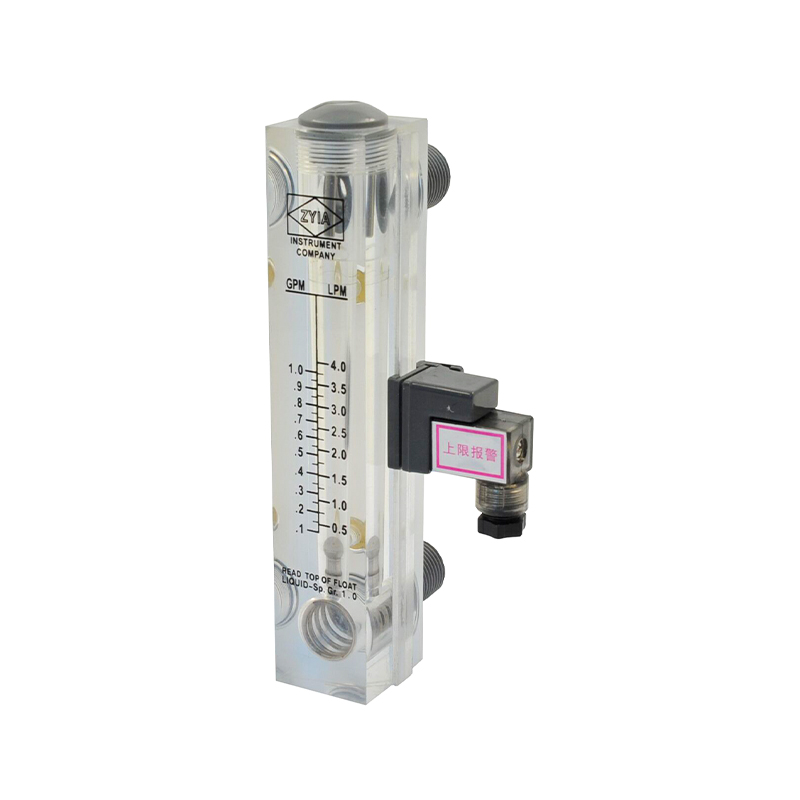

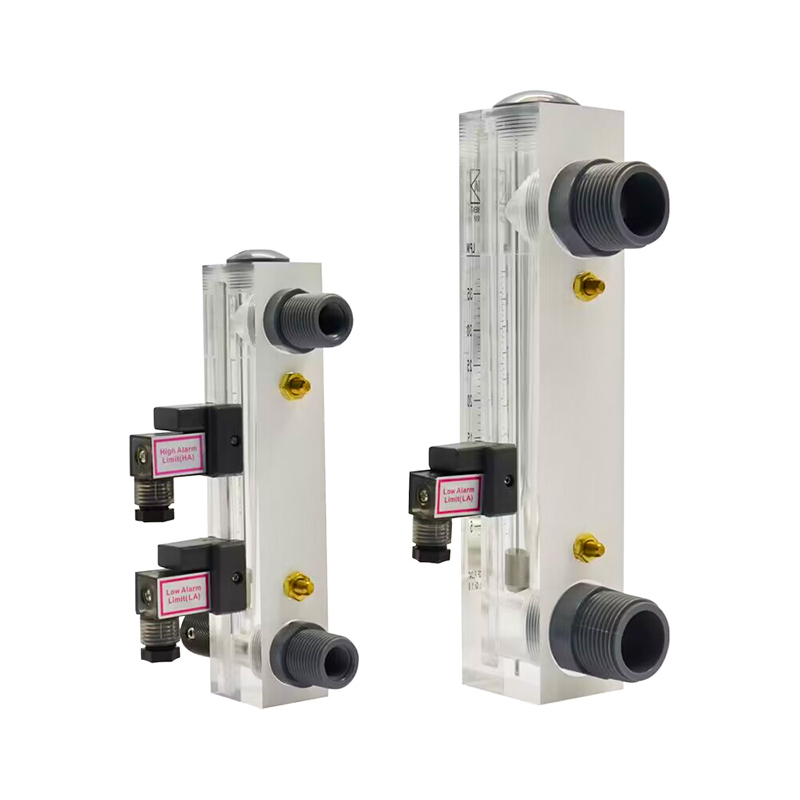

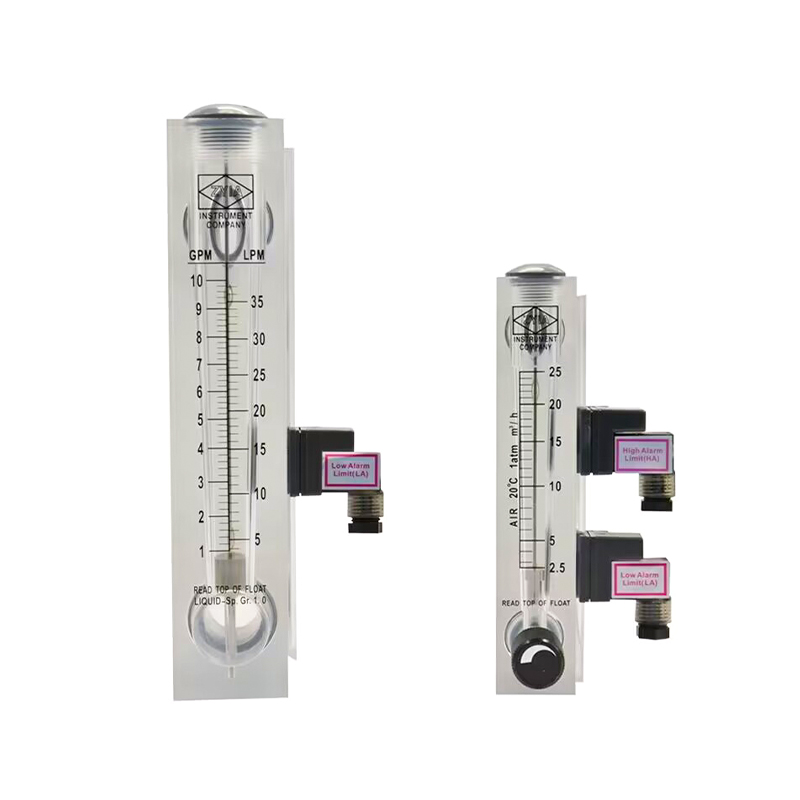

BJ01: High Alarm Limit Switch (HA) BJ02: Low Alarm Limit Switch (LA), Both the switches of BJ01 and BJ02 are able to send relevant signals at maximum, middle and minimum flow. The switches are mounted on certain selected position of rail and whenever magnetic flout reaches or passes the switch level, signals will be sent out for internal contact actuation of either opening or closing.

Technical Parameter

Rated Voltage	max DC24/AC24
Rated Amperage	max 0.3A
Steady Current at Switches Opening or Closing	max DC0.1A
Interruption Capacity	≤10W
Insulation Impedance	>10”Ω
Working Temperature	0℃~+55℃
Protection Grading	IP65
Displacement (position on or off)	≤4mm

Precautions

1) Keep off from ambient magnetic disturbance during mounting e.g. Large motors etc;

2) Flow media should be free from ferromagnetic foreign matters;

3) Ensure pipes or tubes to be mounted with the flowmeters free from any potential vibration in case switch contact actuates accidentally.

■Datasheet of LZM Series Flowmeter with Alarm Limit Switches

Model	Range			Thread	Accuracy
Model	GPM( Liquid)	LPM( Liquid)	Nm³/h(Gas)	Thread	Accuracy
LZM-15 LZM-15J	0.2-2	0.8-8		(M)1/2” BSPT	±4%
	0.3-3	1-11
	0.5-5	2-18
	1-7	2-28
LZM-20 LZM-20J	2-10	8-40	6-60 16-80 16-160	(M)3/4" BSPT
	2-16	8-60
	2-20	8-80
LZM-25 LZM-25J	1.5-15	6-60		(M)1" BSPT
	3-13	10-50
	4-24	10-100
	5-35	10-130
	5-45	10-170
LZM-15Z	0.1-1	0.5-4	0.3-3 1-10 0.4-4 2.5-25 0.6-6 4-40	(M)1/2" BSPT (F)1/4" BSPT
	0.15-1.5	0.6-6
	0.2-2	1-7
	0.3-3	1-11
	0.5-5	2-18
LZM-25Z	1-10	5-35		(M)1" BSPT
	1-15	5-50
	2-14	10-50
	2-20	10-70
	5-35	10-130
	5-40	10-150
	5-45	10-170
		0.3-2.1m³/h
		0.6-3m³/h
		0.6-4.2m³/h
